Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector.
  4. Disconnect the ventilation hose (A) from the fuel tank air filter and canister close valve.
  5. Remove the installation bolts (B), and then remove the canister close valve.

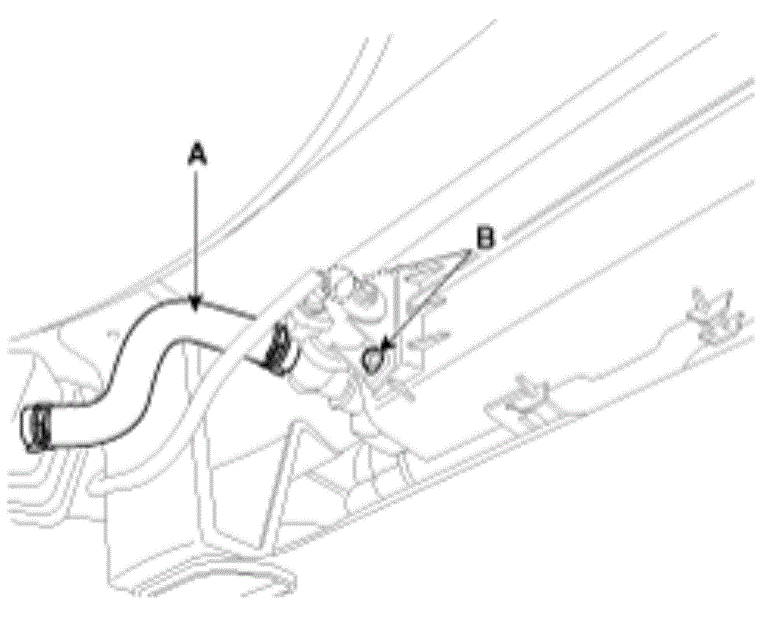

    Fig 1: Canister Close Valve, Ventilation Hose And Bolts Component Location
    G08331099Courtesy of KIA MOTORS AMERICA, INC.
