Passenger Power Window Switch

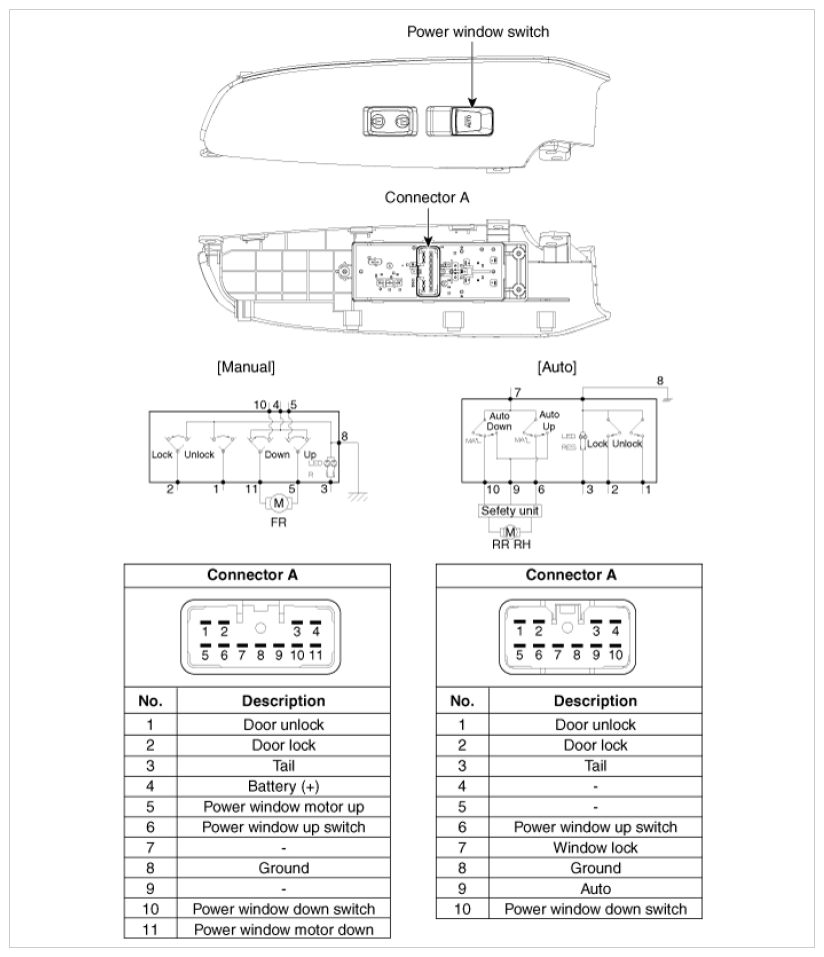

Fig 1: Passenger Power Window Switch Connector Terminal Identification
G09744404Courtesy of KIA MOTORS AMERICA, INC.
