Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B).
  5. Remove the fuel tank air filter after removing the mounting bolts (C).

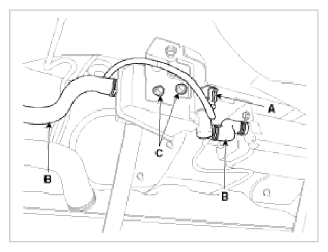

    Fig 1: Canister Close Valve Connector, Ventilation Hose & Mounting Bolts
    G09743058Courtesy of KIA MOTORS AMERICA, INC.
  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.

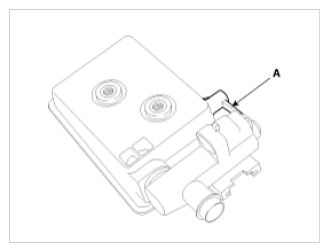

    Fig 2: Canister Close Valve Lever
    G09743059Courtesy of KIA MOTORS AMERICA, INC.

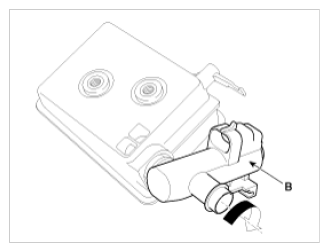

    Fig 3: Separating Canister Close Valve
    G09743060Courtesy of KIA MOTORS AMERICA, INC.
