Fuel Tank Pressure Sensor (FTPS): Specification

Pressure [kPa (kgf/cm2 , in H2O) Output Voltage (V)
-6.67 (-0.068, -26.8) 0.5
0 2.5
+6.67 (0.068, 26.8) 4.5

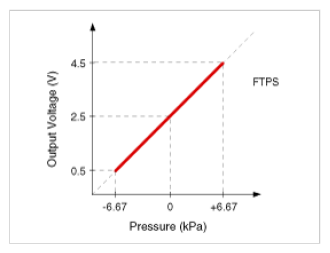

Fig 1: Fuel Tank Pressure Sensor Output Voltage Versus Pressure Graph
G09743017Courtesy of KIA MOTORS AMERICA, INC.
