Repair Procedures: Removal

Disconnect the battery negative terminal.
Remove the engine cover.
Disconnect the ignition coil connectors (A).

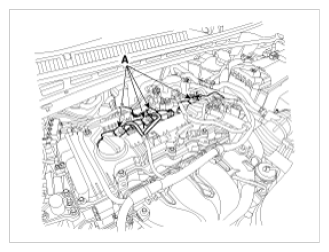

Fig 1: Identifying Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

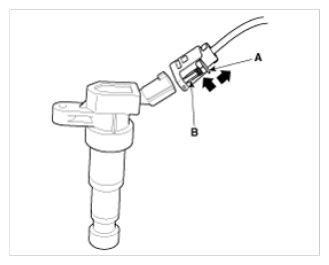

Fig 2: Removing Ignition Coil Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (A).

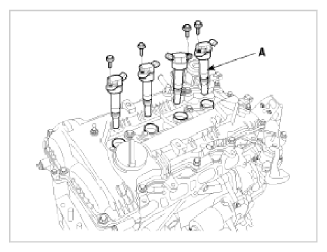

Fig 3: Identifying Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
