Repair Procedures: Removal

Remove the battery and the battery tray.
(Refer to "CHARGING SYSTEM - 2.0L ")
Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft))

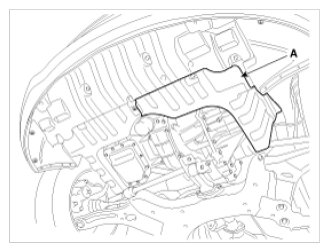

Fig 1: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. (Refer to "FLUID ")
Remove the air breather hose (A).
Remove the valve body cover (B).
Tightening torque:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

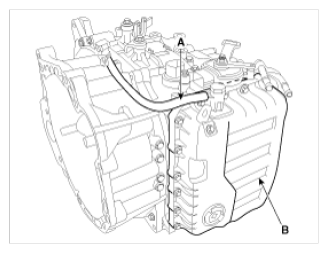

Fig 2: Valve Body Cover & Air Breather Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the oil temperature sensor connector (A).

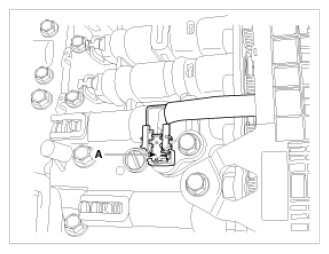

Fig 3: Oil Temperature Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil temperature sensor (A) after removing a bolt.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

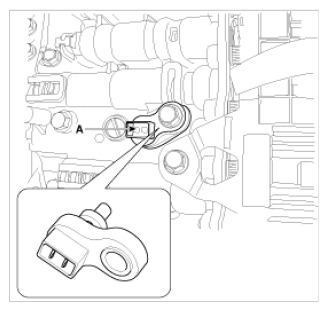

Fig 4: Oil Temperature Sensor
Courtesy of KIA MOTORS AMERICA, INC.
