Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the main crash pad assembly.
(Refer to "MAIN CRASH PAD ASSEMBLY ")
Remove the RF receiver (A) after loosening a nut.

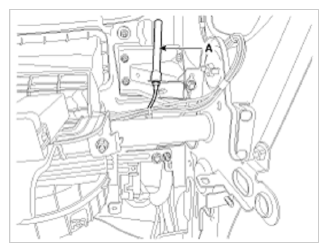

Fig 1: RF Receiver
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the SMK connectors (A) from the SMK unit.

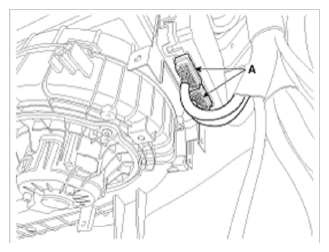

Fig 2: SMK Connectors
Courtesy of KIA MOTORS AMERICA, INC.

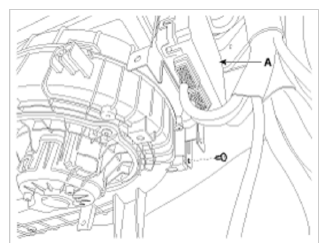

Remove the smart key unit (A) with loosening the nut and screw.

Fig 3: Smart Key Unit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

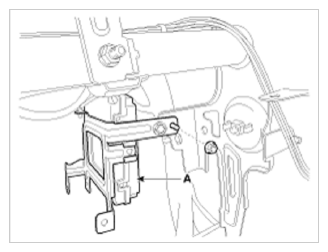

Fig 4: Smart Key Unit (2 Of 2)
