Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the knock sensor connector (A).

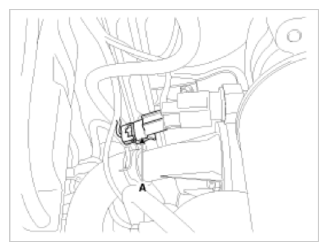

    Fig 1: Knock Sensor Connector
    G09748759Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the intake manifold (Refer to "INTAKE & EXHAUST SYSTEM ").
  4. Remove the installation bolt (A), and then remove the sensor from the cylinder block.
    Fig 2: Intake Manifold Installation Bolt
    G09748760Courtesy of KIA MOTORS AMERICA, INC.
