Repair Procedures: Adjustment

Place the shift lever in the interior, and the transmission manual control lever, to the N position.
Connect the shift lever (B) in the interior with the shift cable (A).

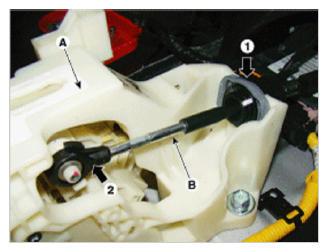

Fig 1: Connecting Shift Lever In Interior With Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Lightly push the shift cable towards "F" to tighten the cable.
Tighten the nut (A) to the specified torque.
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.8 lb-ft)

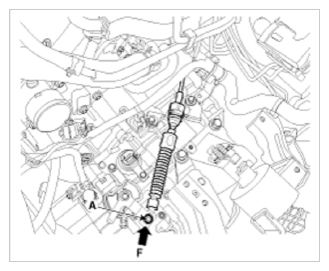

Fig 2: Tightening Shift Cable Nut To Spec
Courtesy of KIA MOTORS AMERICA, INC.
