Repair Procedures: Removal

Disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")

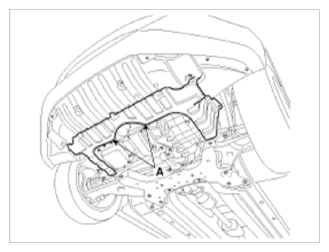

Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "FLUID ")

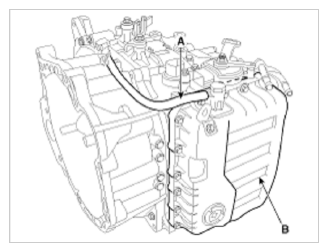

Remove the air breeder hose (A).
Remove the valve body cover (B).
Tightening torque:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

Fig 2: Valve Body Cover & Air Breeder Hose
Courtesy of KIA MOTORS AMERICA, INC.

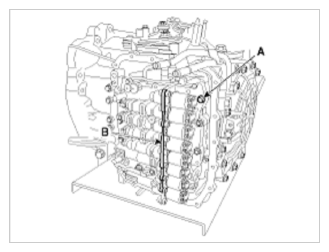

Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 3: Solenoid Valve & Oil Temperature Sensor Connectors
Courtesy of KIA MOTORS AMERICA, INC.

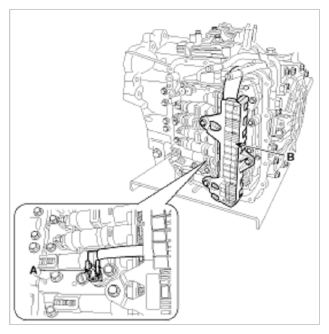

Remove the solenoid valve support bracket (B) and the valve body mounting bolt (A-1ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 4: Solenoid Valve Support Bracket & Bolt
Courtesy of KIA MOTORS AMERICA, INC.

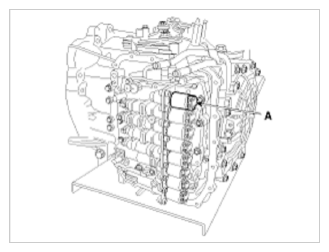

Remove the torque converter control solenoid valve (A).

Fig 5: Torque Converter Control Solenoid Valve
Courtesy of KIA MOTORS AMERICA, INC.
