Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the drive belt.

    (Refer to "DRIVE BELT ")

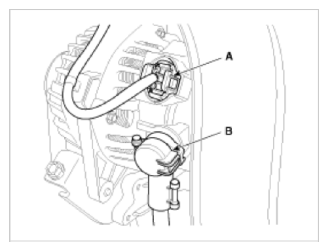

  3. Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.
    Fig 1: Identifying Alternator Connector & Cable
    G09745518Courtesy of KIA MOTORS AMERICA, INC.

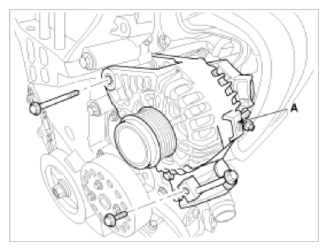

  4. Pull out the through bolt and then remove the alternator (A).
    Fig 2: Identifying Alternator & Mounting Bolts
    G09745519Courtesy of KIA MOTORS AMERICA, INC.
