Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

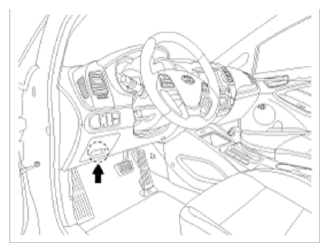

Fig 1: Data Link Connector Location
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

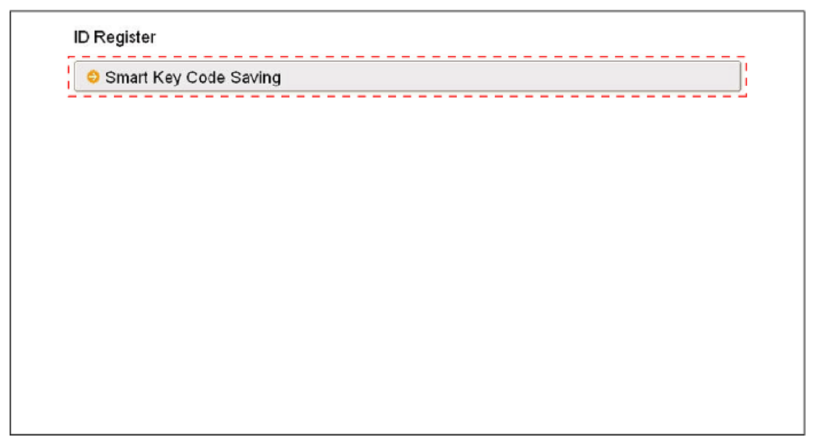

Fig 2: Display - Smart Key Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.

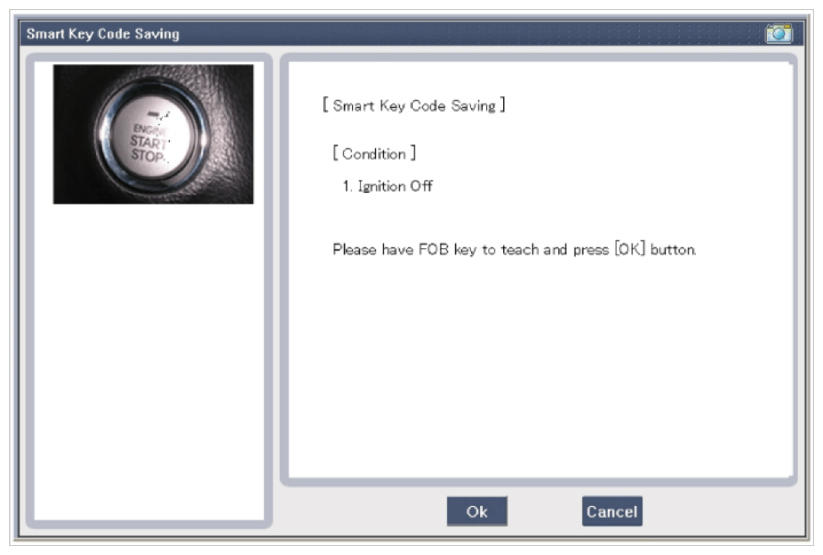

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown.

Fig 3: Display - Smart Key Teaching Menu Screen
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

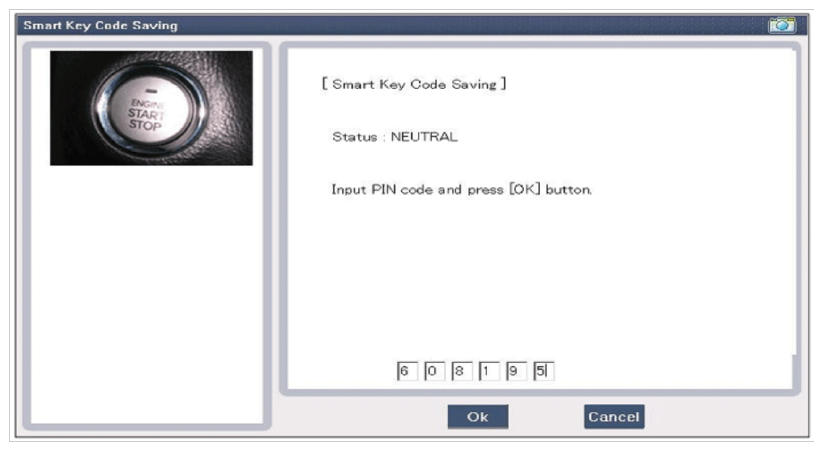

Fig 4: Display - Smart Key Pin Code Entering Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Display - Smart Key Pin Code Confirmation Screen
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

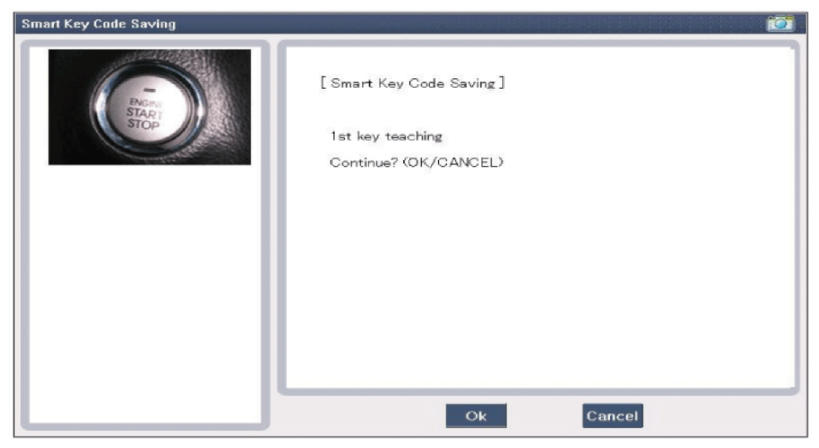

Fig 6: Display - First Key Teaching Continue Screen
Courtesy of KIA MOTORS AMERICA, INC.

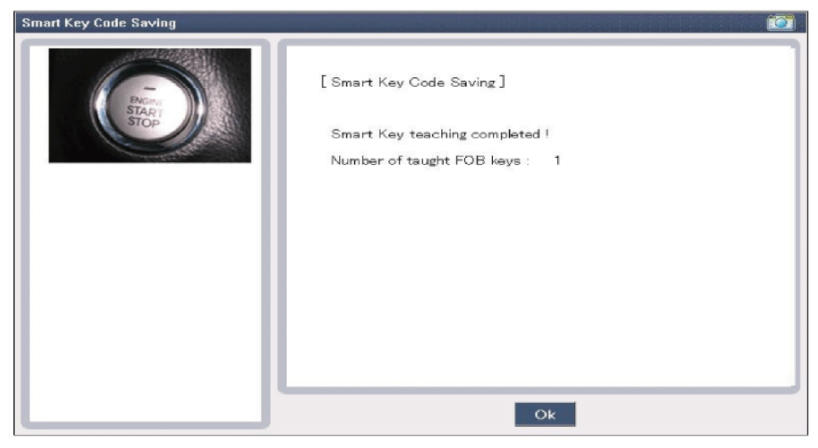

Fig 7: Display - First Key Teaching Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.

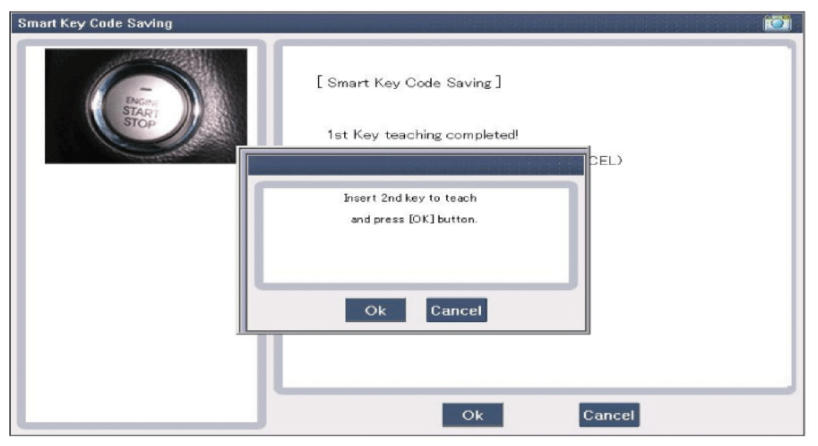

Fig 8: Display - 2nd Key Teaching Continue Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Display - 2nd Key Teaching Confirmation Screen
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

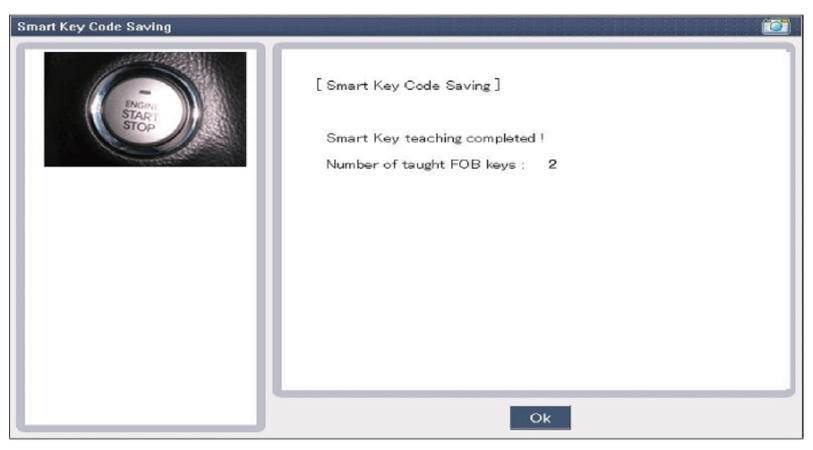

Fig 10: Display - Second Key Teaching Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown when key teaching process is completed.
