Components and Components Location: Component

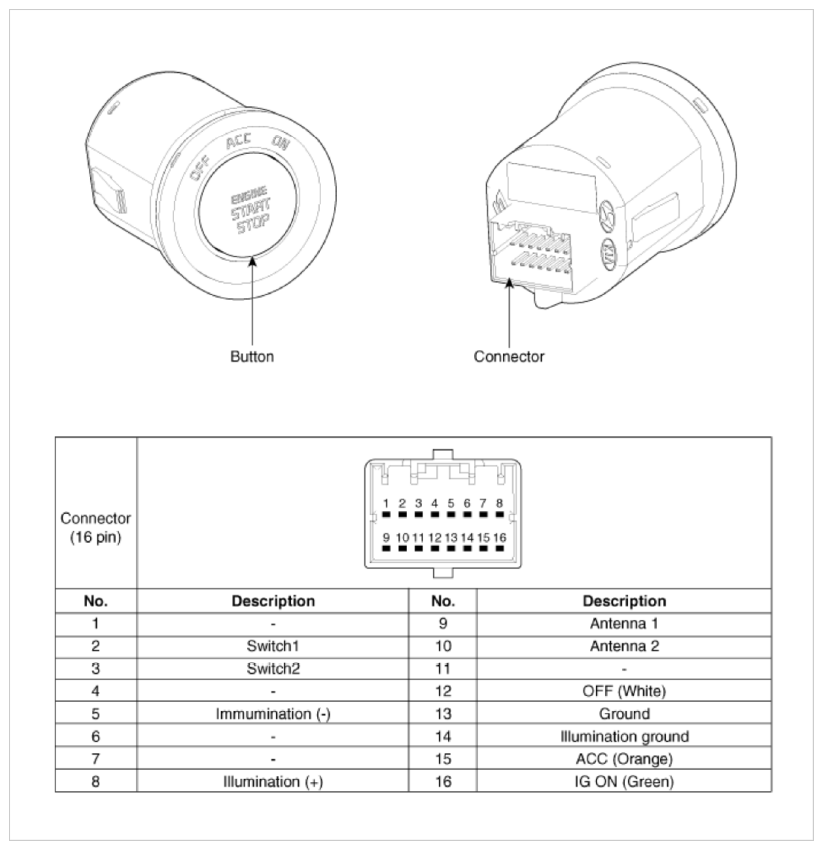

Fig 1: Start Stop Button Connector Terminal Identification
G09745063Courtesy of KIA MOTORS AMERICA, INC.
