Repair Procedures: Removal

[Bank 1/Sensor 1]

1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2. Disconnect the connector (A), and then remove the heated oxygen sensor (B).
   NOTE: Note that the SST 09392-1Y100 is useful when removing the heated oxygen sensor.

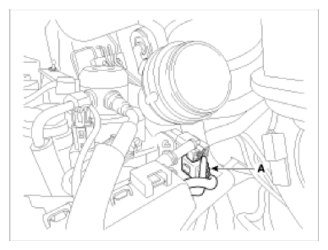

   Fig 1: Heated Oxygen Sensor Connector (Bank1/Sensor1)

   Courtesy of KIA MOTORS AMERICA, INC.

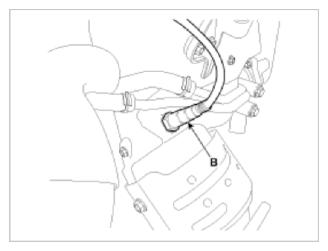

   Fig 2: Removing Heated Oxygen Sensor (Bank1/Sensor1)

   Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2. Disconnect the connector (A) and remove the heated oxygen sensor (B).

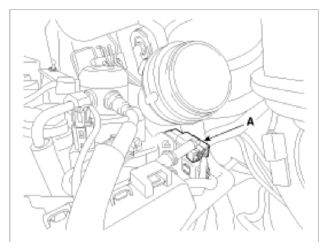

   Fig 3: Heated Oxygen Sensor Connector (Bank1/Sensor2)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Removing Heated Oxygen Sensor (Bank1/Sensor2)

   Courtesy of KIA MOTORS AMERICA, INC.
