Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the air filter and canister close valve.
  5. Remove the fuel tank air filter by loosening the mounting bolts (C).

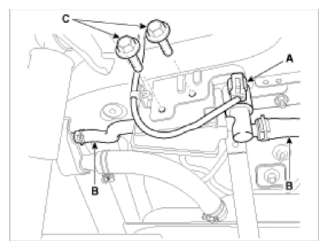

    Fig 1: Canister Close Valve Connector, Ventilation Hose & Mounting Bolts
    G09750271Courtesy of KIA MOTORS AMERICA, INC.
  6. Release the lever (A) and then separate the canister close valve (B) from the fuel tank air filter (C) by rotating the valve in the direction of the arrow in the image below.

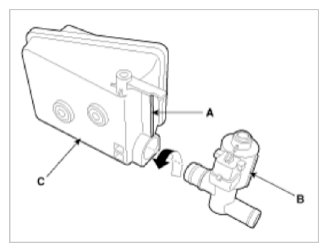

    Fig 2: Separating Canister Close Valve From Fuel Tank Air Filter
    G09750272Courtesy of KIA MOTORS AMERICA, INC.
