NVLD (Natural Vacuum Leakage Detection): Troubleshooting: Waveform

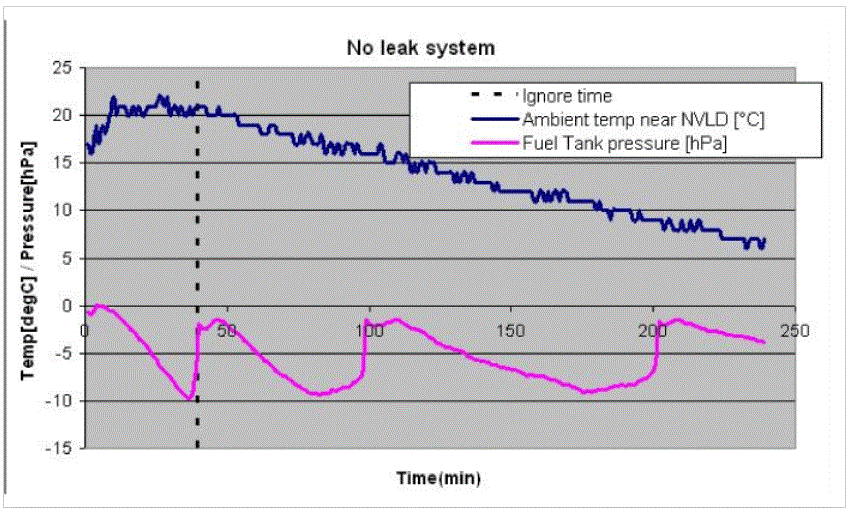

Fig 1: NVDL Signal Waveform - No Leak

Courtesy of KIA MOTORS AMERICA, INC.

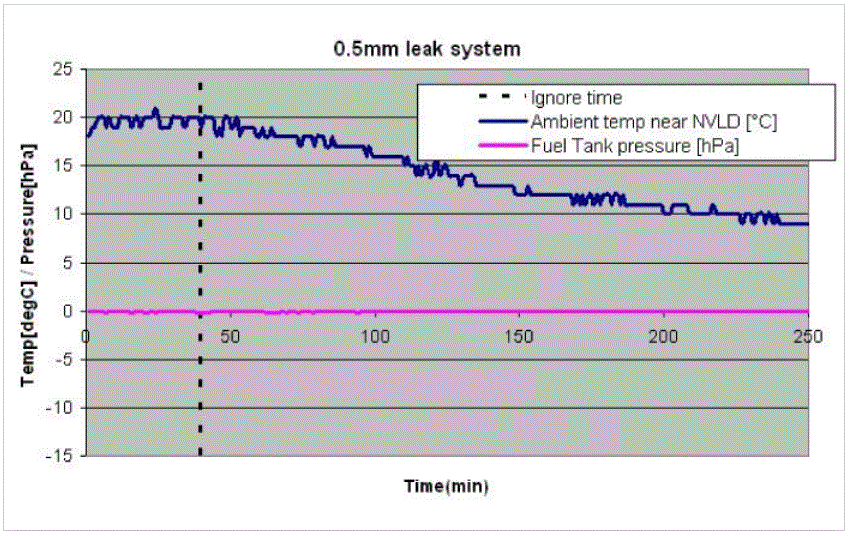

Fig 2: NVDL Signal Waveform - With 0.5 mm Leak

Courtesy of KIA MOTORS AMERICA, INC.
