Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intake manifold. Refer to INTAKE AND EXHAUST SYSTEM .
  3. Remove the installation screws (A), and then remove the VCM position sensor.

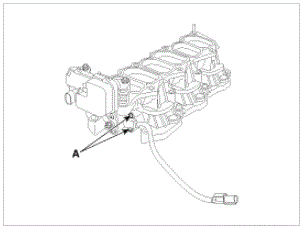

    4. Fig 1: Identifying VCM Position Sensor Screws
    G00547152Courtesy of KIA MOTORS AMERICA, INC.
