Repair Procedures: Removal

  1. Disconnect the negative(-) battery terminal.
  2. Remove the crash pad lower panel (A).

    (Refer to "CRASH PAD LOWER PANEL REPLACEMENT ")

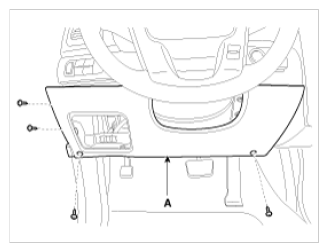

    Fig 1: Identifying Crash Pad Lower Panel
    G09767445Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the start/stop button cover (A) after loosening the mounting screw.

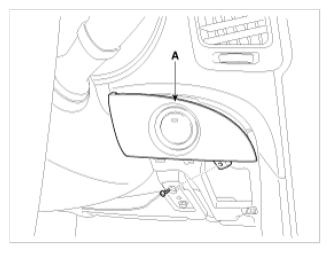

    Fig 2: Identifying Start/Stop Button Cover
    G09767446Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A).

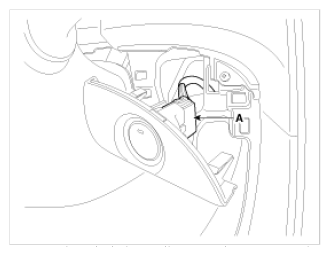

    Fig 3: Identifying Start/Stop Button Connector
    G09767447Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the start/stop button (A) after loosening the mounting screws.

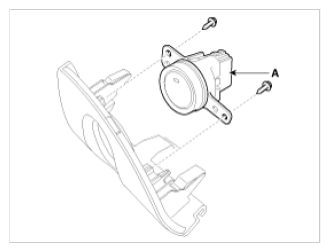

    Fig 4: Identifying Start/Stop Button
    G09767448Courtesy of KIA MOTORS AMERICA, INC.
