Repair Procedures: Removal

  1. Turn the ignition switch off and disconnect the battery negative (-) cable.
  2. Disconnect the IDB connector (A).
  3. Remove the IDB bracket assembly (B) after removing the nuts.

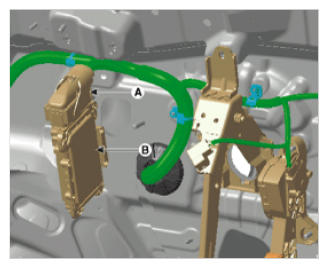

    Fig 1: Identifying IDB Bracket Assembly And Connector
    G09765286Courtesy of KIA MOTORS AMERICA, INC.
  4. After removing the installation bolts (A), remove the IDB from the bracket.
    Fig 2: Identifying IDB Bracket Bolts
    G09765287Courtesy of KIA MOTORS AMERICA, INC.
