Circuit Diagram

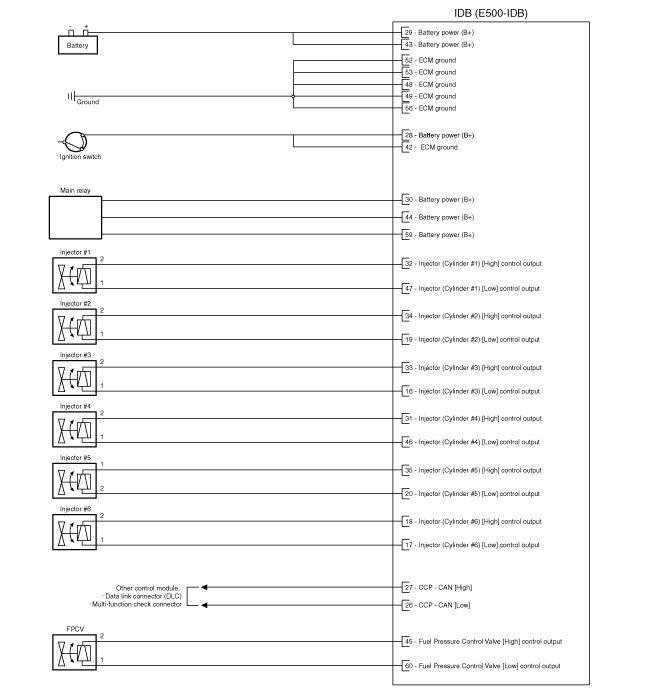

Fig 1: IDB Circuit Diagram (1 Of 2)
G09765284Courtesy of KIA MOTORS AMERICA, INC.

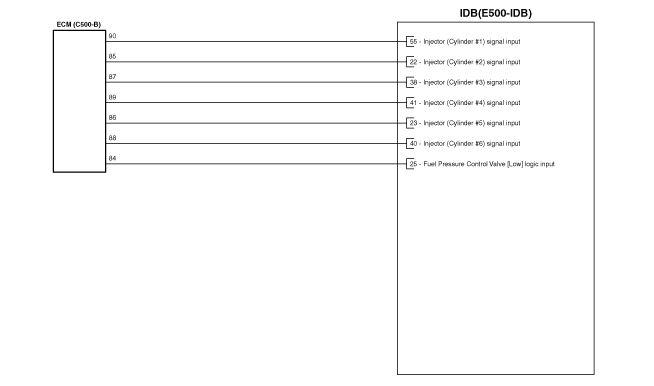

Fig 2: IDB Circuit Diagram (2 Of 2)
G09765285Courtesy of KIA MOTORS AMERICA, INC.
