Wave Form

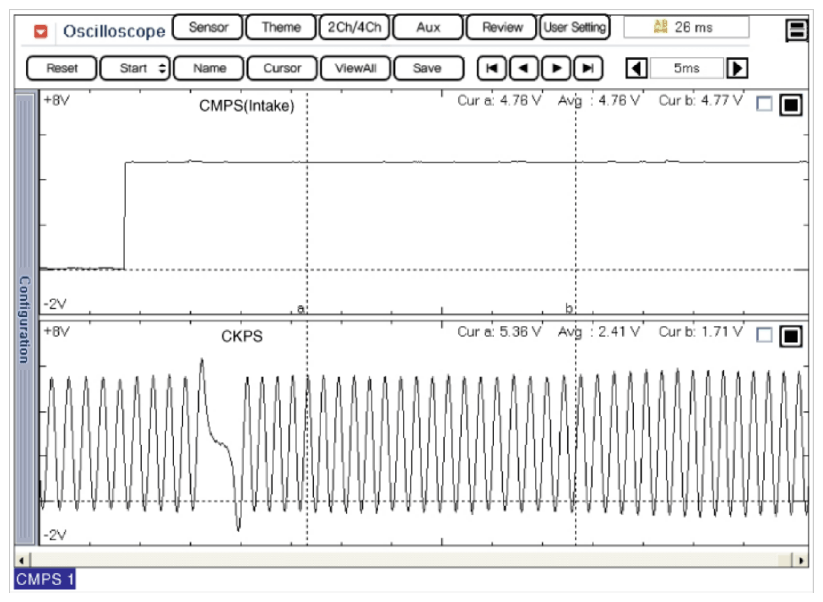

Fig 1: Display Camshaft Position Sensor Signal Waveform (1 Of 2)
G09779264Courtesy of KIA MOTORS AMERICA, INC.

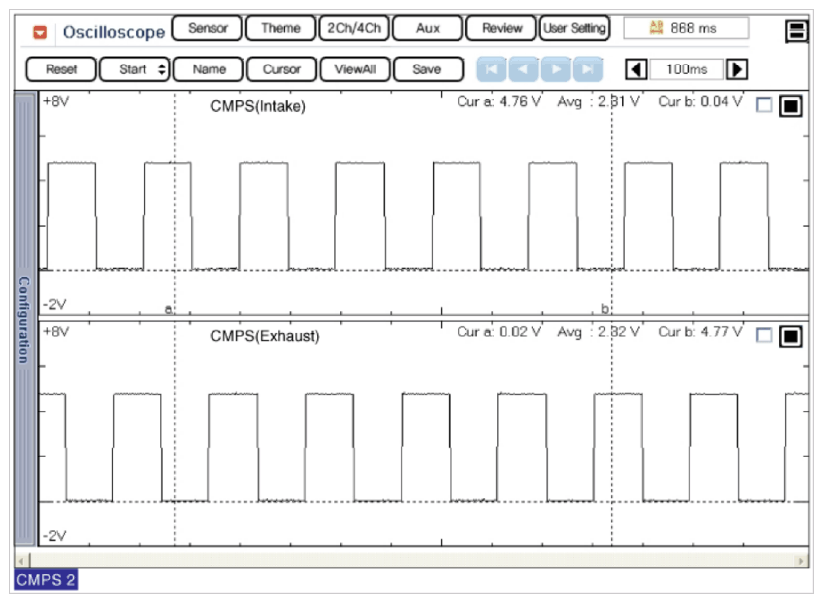

Fig 2: Display Camshaft Position Sensor Signal Waveform (2 Of 2)
G09779265Courtesy of KIA MOTORS AMERICA, INC.
