Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A), and then remove the sensor (B).

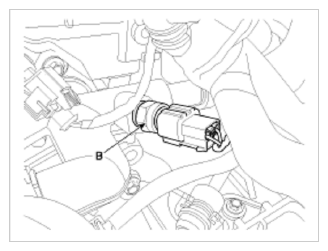

    Fig 1: Identifying Engine Coolant Temperature Sensor And Connector
    G09779251Courtesy of KIA MOTORS AMERICA, INC.
