Engine Control System - 2.0L
>>
Engine Coolant Temperature Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(A/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (A/T)

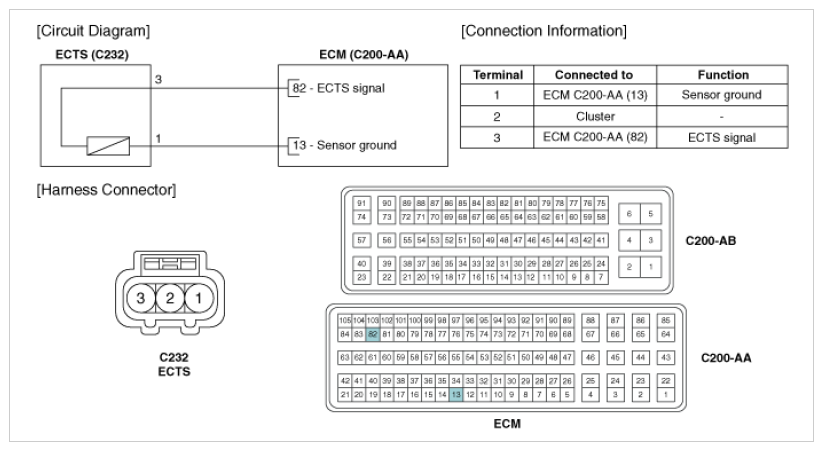

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
