Circuit Diagram: (M/T)

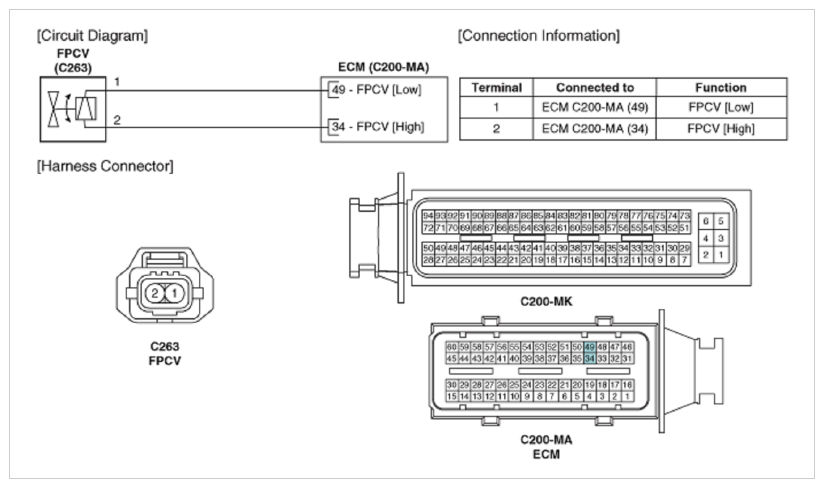

Fig 1: Fuel Pressure Control Valve Circuit Diagram (M/T)

G09779330

Courtesy of KIA MOTORS AMERICA, INC.
