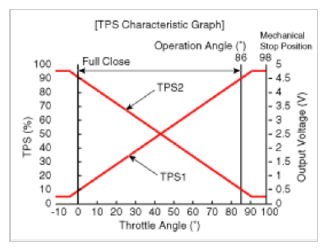

Engine Control/Fuel System - General Information - 2.0L: Specifications: [TPS2]
| Item | Opening Percentage (%) | Output Voltage (V) [Vref = 5V] |
|---|---|---|
| C.T | 87 ~ 93 | 4.35 ~ 4.65 |
| W.O.T | 6 ~ 11.4 | 0.3 ~ 0.57 |
Crankshaft Position Sensor (CKPS)
- Type: Magnetic field sensitive Type
- Specification
| Item | Specification |
|---|---|
| Coil Resistance (Ω) | 774 ~ 946 [20°C (68°F)] |
Camshaft Position Sensor (CMPS)
- Type: Hall effect type
Knock Sensor (KS)
- Type: Piezo-electricity type
- Specification
| Item | Specification |
|---|---|
| Capacitance (pF) | 850 ~ 1,150 |
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
- Type: Zirconia (ZrO2) [Linear] type
- Specification
| Item | Specification |
|---|---|
| Heater Resistance (Ω) | 2.4 ~ 4.0 [20°C (69.8°F)] |
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
- Type: Zirconia (ZrO2) [Binary] type
- Specification
| A/F Ratio (λ) | Output Voltage (V) |
|---|---|
| RICH | 0.6 ~ 1.0 |
| LEAN | 0 ~ 0.4 |
| Item | Specification |
|---|---|
| Heater Resistance (Ω) | Approx. 9.0 [20°C (68°F)] |

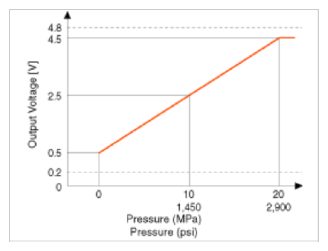

Rail Pressure Sensor (RPS)
- Type: Piezo-electricity type
- Specification
Accelerator Position Sensor (APS)
- Type: Variable resistor type
- Specification
| Accelerator Position | Output Voltage (V) | |
|---|---|---|
| APS1 | APS2 | |
| C.T | 0.7 ~ 0.8 | 0.29 ~ 0.46 |
| W.O.T | 3.85 ~ 4.35 | 1.93 ~ 2.18 |
