Components Location

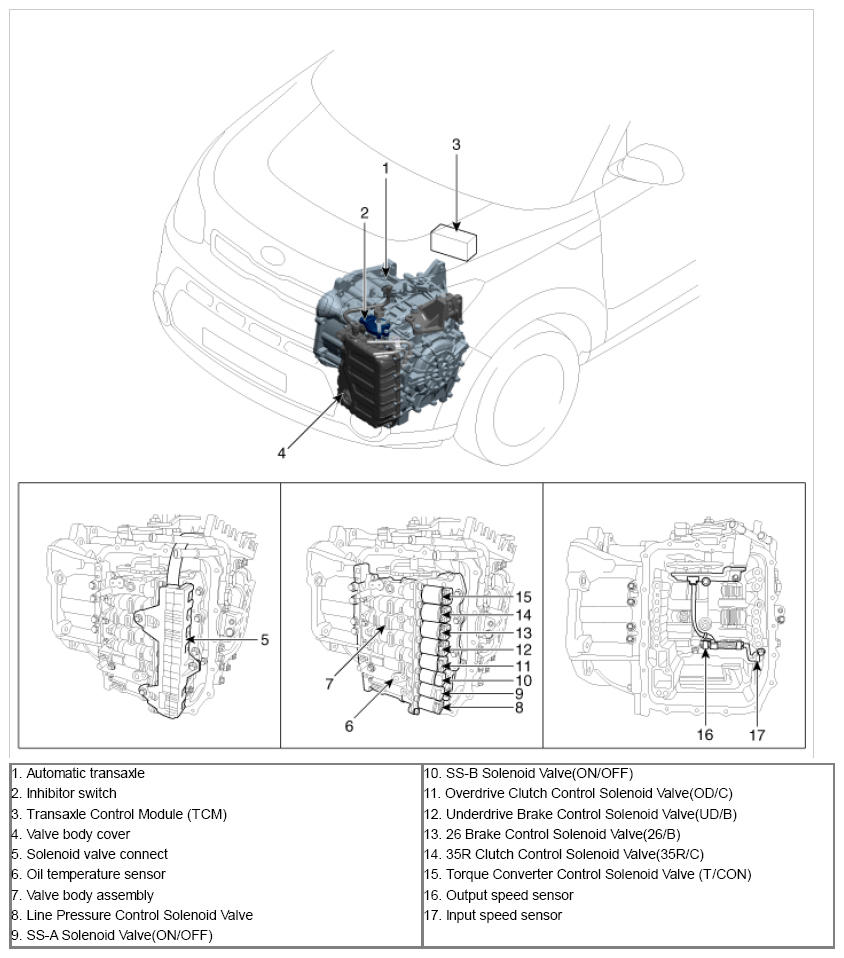

Fig 1: Automatic Transaxle Control System Components Location
G09779547Courtesy of KIA MOTORS AMERICA, INC.

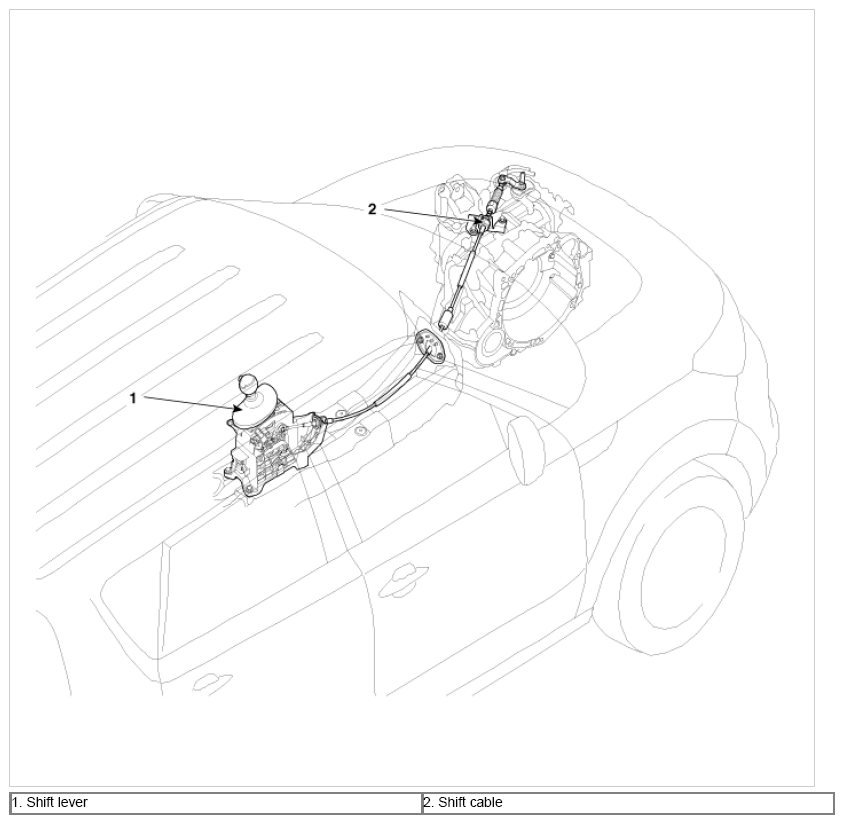

Fig 2: Shift Lever & Cable Components Location
G09779548Courtesy of KIA MOTORS AMERICA, INC.
