Repair procedures: Removal

  1. Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
  2. Disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly.

    (Refer to "AIR CLEANER ")

  4. Disconnect the inhibitor switch connector (A).
  5. Remove the shift cable mounting nut (B).
    Fig 1: Inhibitor Switch Connector & Shift Cable Mounting Nut
    G09779622Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the manual control lever (B) and the washer after removing a nut (A).
    Fig 2: Manual Control Lever & Nut
    G09779623Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the inhibitor assembly (A) after removing the bolts (2ea).

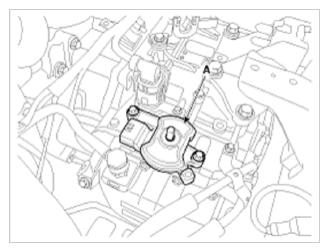

    Fig 3: Inhibitor Assembly
    G09779624Courtesy of KIA MOTORS AMERICA, INC.
