Shift lock solenoid replacement

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Remove the shift lock solenoid (A) from the shift lever assembly.

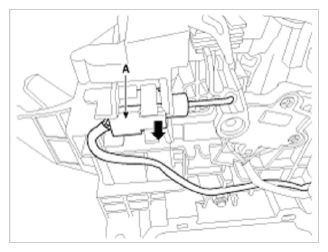

Fig 1: Removing Shift Lock Solenoid From Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the wiring (B) of shift lock solenoid from the main connector (A).

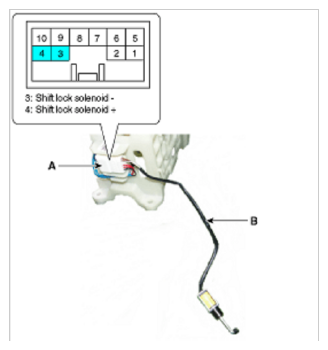

Fig 2: Disconnecting Shift Lock Solenoid From Main Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
