Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door module.

    (Refer to "FRONT DOOR MODULE ")

  3. Remove the hole plug (A).
  4. After loosening the mounting bolt, then remove the front door outside handle cover (B).

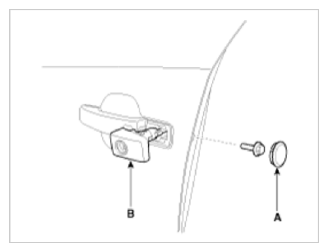

    Fig 1: Identifying Front Door Outside Handle Cover And Hole Plug
    G09778505Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the front door outside handle (A) by sliding it rearward.

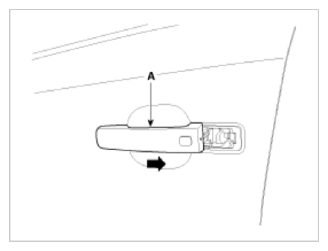

    Fig 2: Sliding Front Door Outside Handle
    G09778506Courtesy of KIA MOTORS AMERICA, INC.
