Interior Antenna 1

  1. Disconnect the negative(-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

  3. Disconnect the connector (A) from the interior antenna.

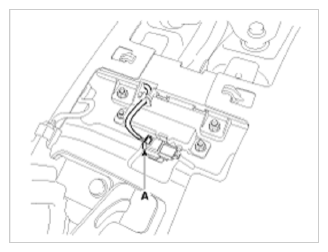

    Fig 1: Identifying Interior Antenna 1 Connector
    G09778498Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the interior antenna (A) after loosening the mounting nuts.

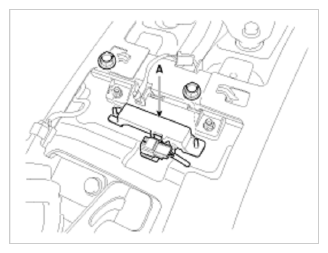

    Fig 2: Identifying Interior Antenna
    G09778499Courtesy of KIA MOTORS AMERICA, INC.
