Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

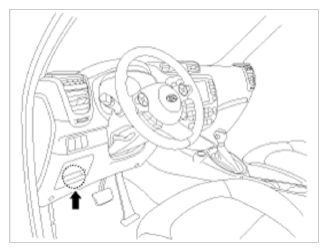

Fig 1: [Locating Data Link Connector]
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

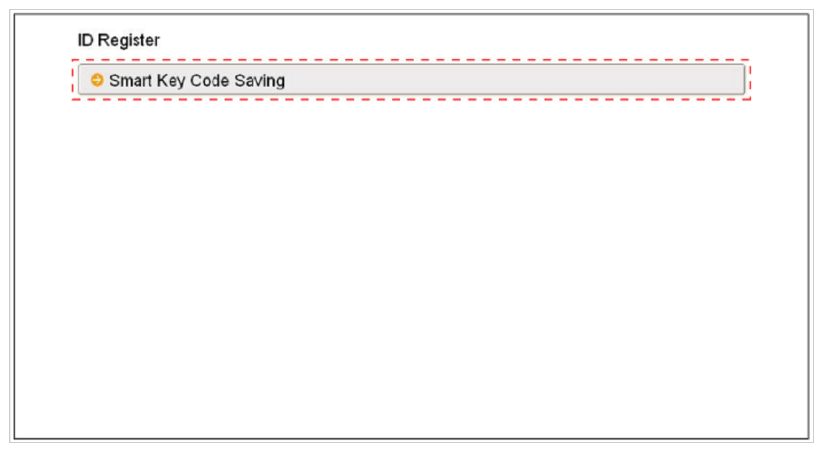

Fig 2: Selecting Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

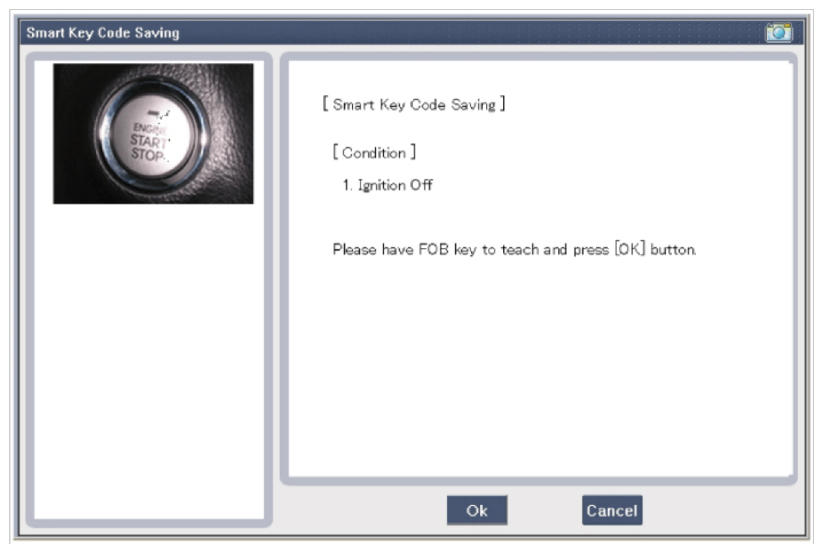

Fig 3: Display Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

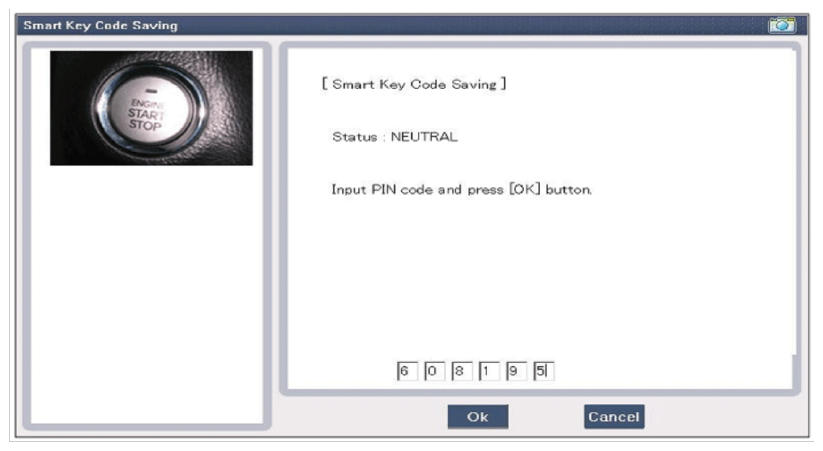

Fig 4: Display Smart Key Pin Code Entering Screen
Courtesy of KIA MOTORS AMERICA, INC.

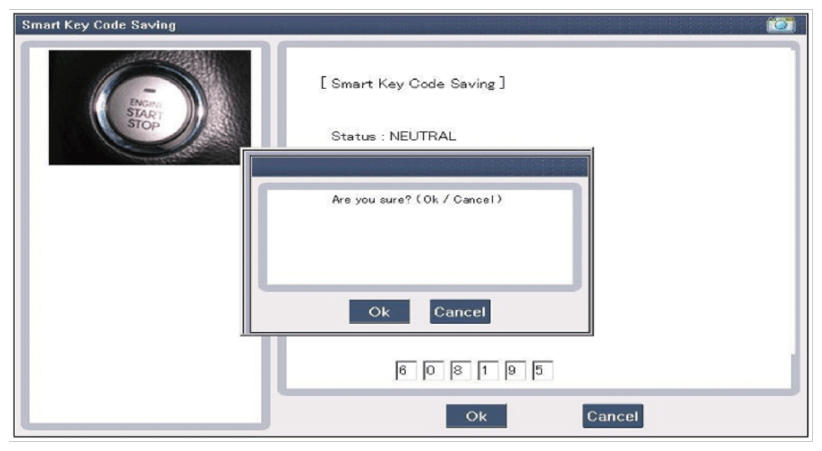

Fig 5: Display Smart Key Confirmation Screen
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 6: Display Screen For First Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.

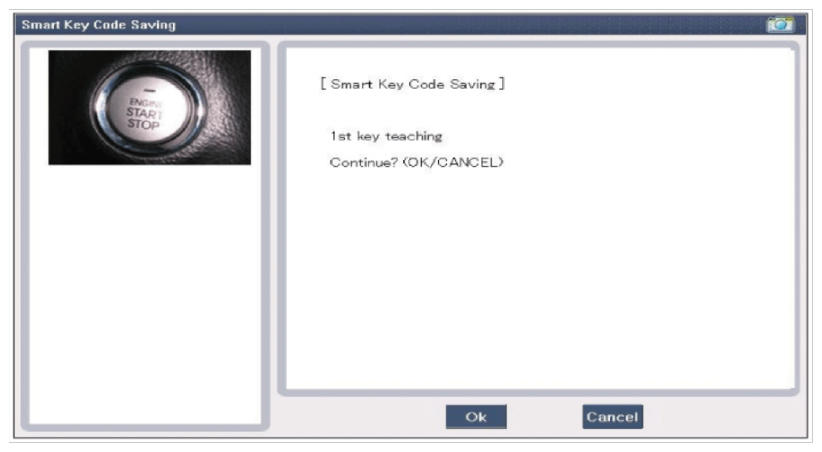

Fig 7: Display Message For First Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.

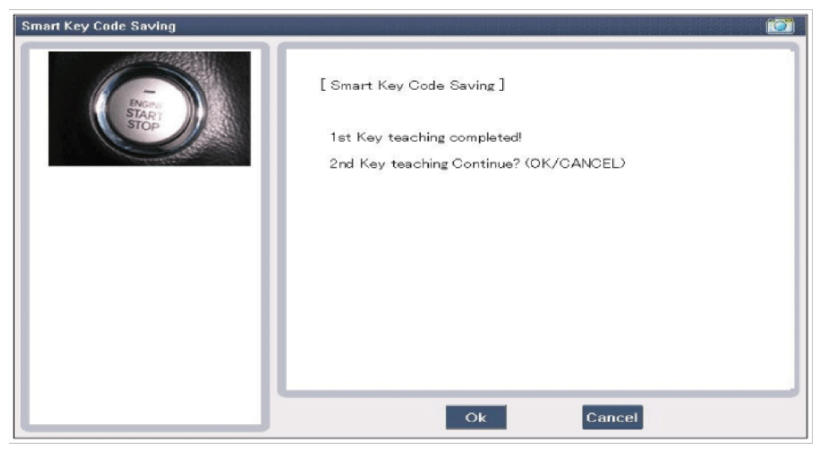

Fig 8: Display First Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.

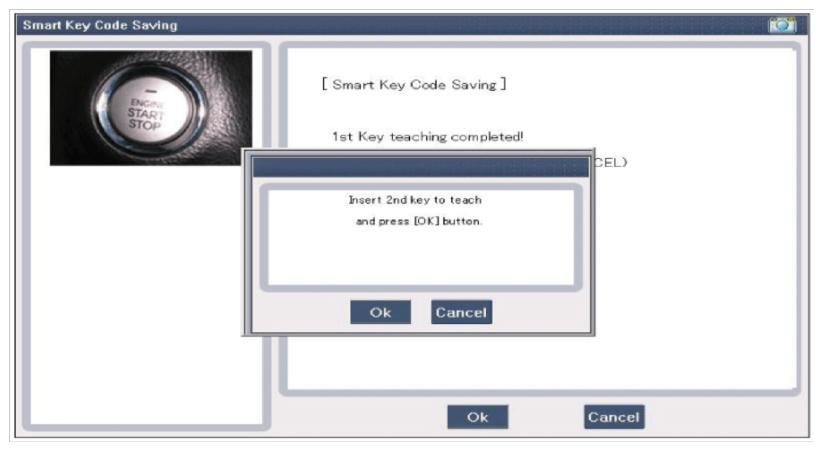

Fig 9: Display Confirmation Screen For 2nd Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

Fig 10: Display Completed Screen For 2nd Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.

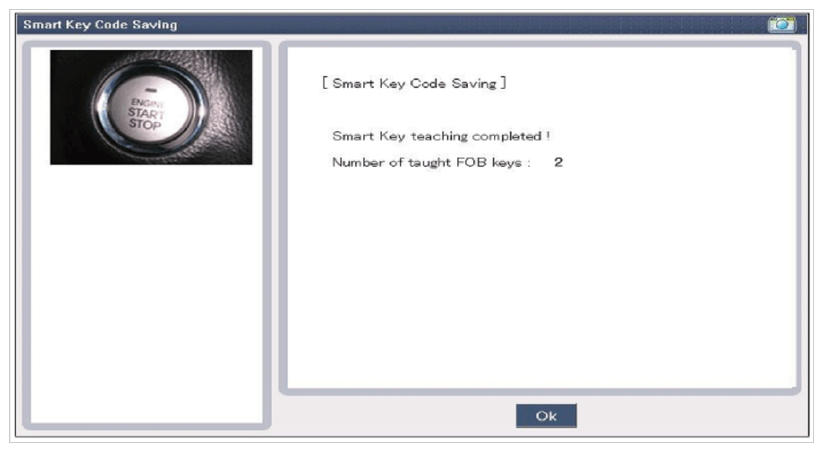

Then the screen will be shown as below when key teaching process is completed.
