Components and Components Location: Component

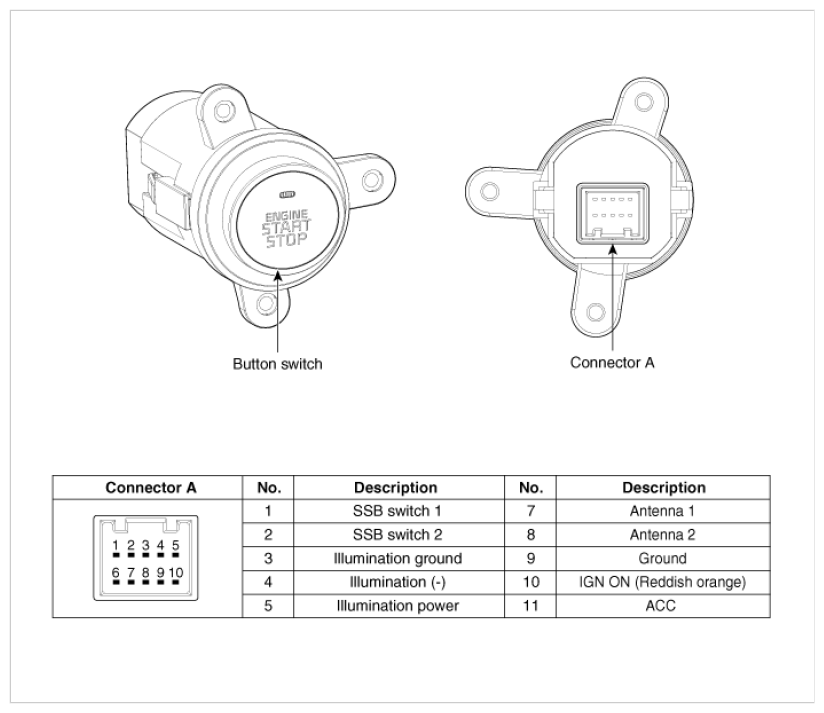

Fig 1: Start/Stop Button Connector Terminal Identification
G09782408Courtesy of KIA MOTORS AMERICA, INC.
