Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Disconnect the accelerator position sensor connector.
  3. Remove the mounting nuts.
  4. Remove the cap (A)

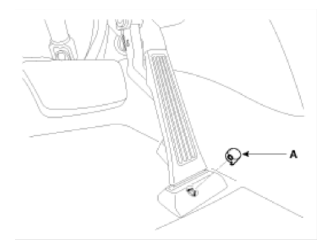

    Fig 1: Identifying Cap
    G09773006Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the mounting bolt (A), and then remove the accelerator pedal module.

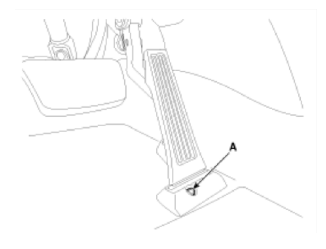

    Fig 2: Identifying Accelerator Pedal Module Mounting Bolt
    G09773007Courtesy of KIA MOTORS AMERICA, INC.
