Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the mounting bolt (B), and then remove the valve from the engine.

    [Bank 1/Intake]

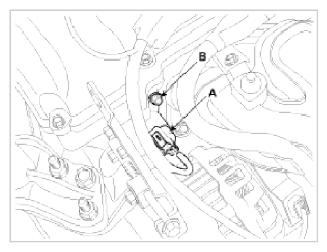

    Fig 1: Identifying CVVT Oil Control Valve Connector And Mounting Bolt (Bank 1/Intake)
    G09773035Courtesy of KIA MOTORS AMERICA, INC.

    [Bank 1/Exhaust]

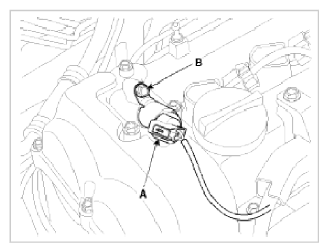

    Fig 2: Identifying CVVT Oil Control Valve Connector And Mounting Bolt (Bank 1/Exhaust)
    G09773036Courtesy of KIA MOTORS AMERICA, INC.
