Circuit Diagram: (A/T)

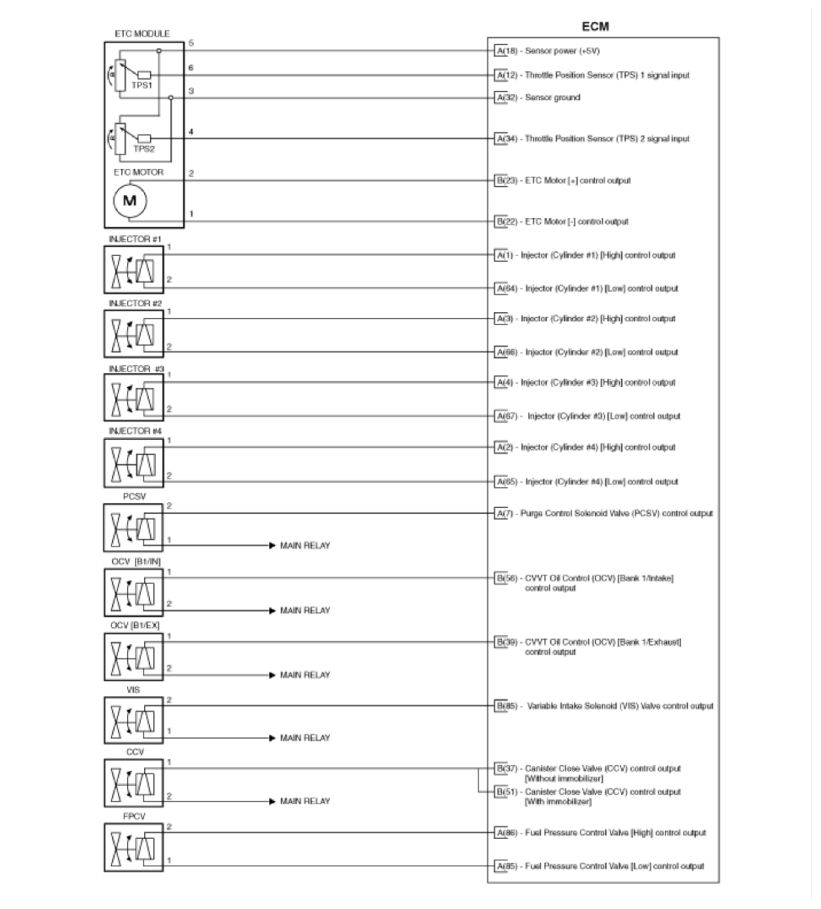

Fig 1: ECM Terminal Input/Output (A/T) - Circuit Diagram (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

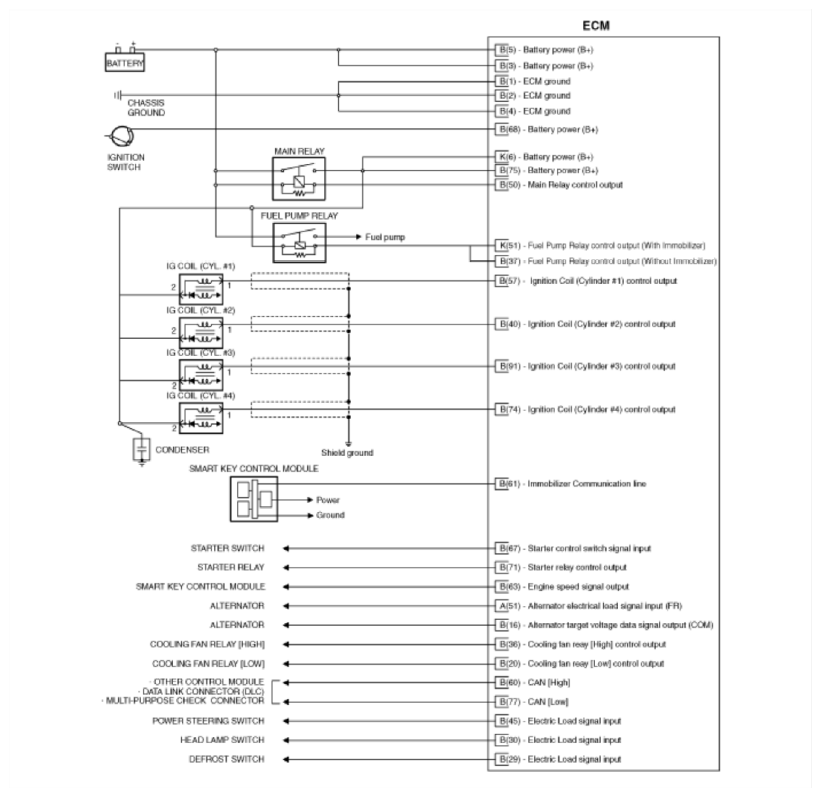

Fig 2: ECM Terminal Input/Output (A/T) - Circuit Diagram (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

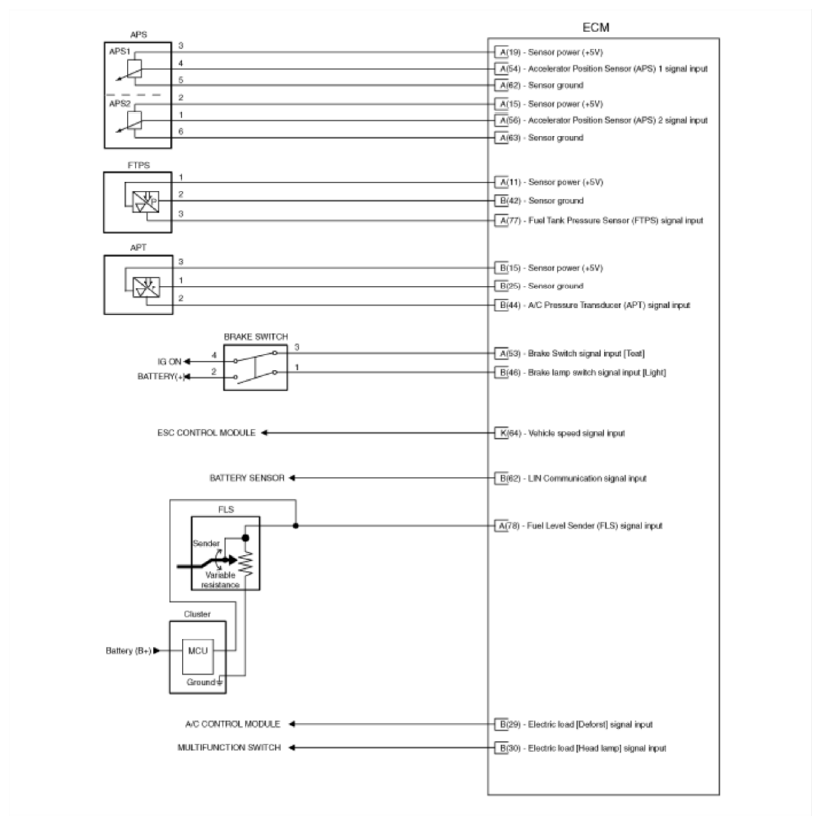

Fig 3: ECM Terminal Input/Output (A/T) - Circuit Diagram (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

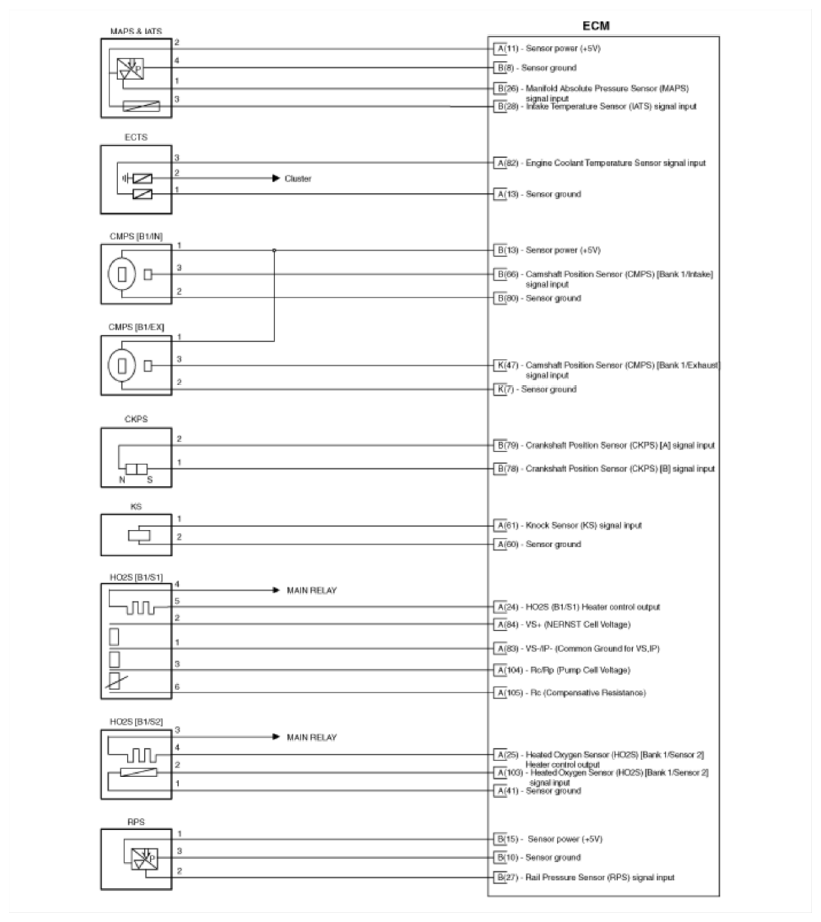

Fig 4: ECM Terminal Input/Output (A/T) - Circuit Diagram (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
