Signal Waveform

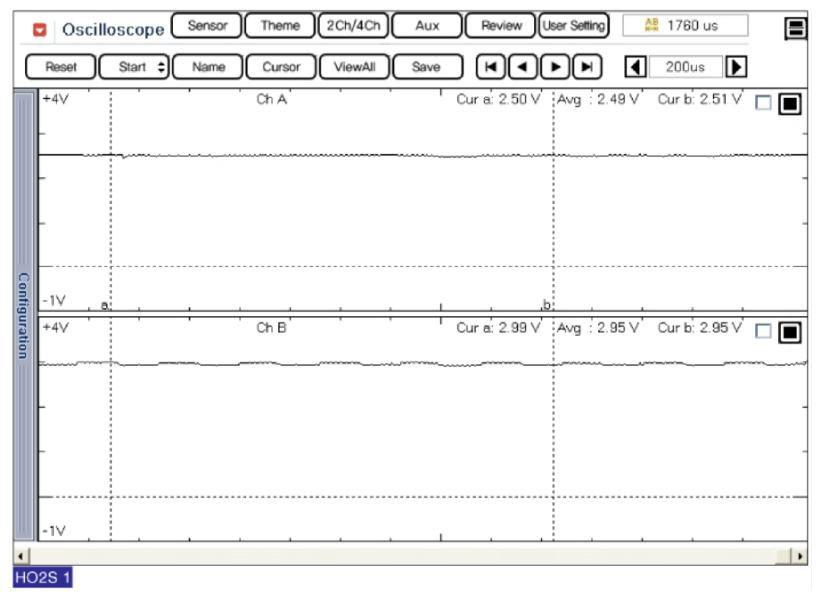

Fig 1: HO2S 1 Signal Waveform
G09772987Courtesy of KIA MOTORS AMERICA, INC.

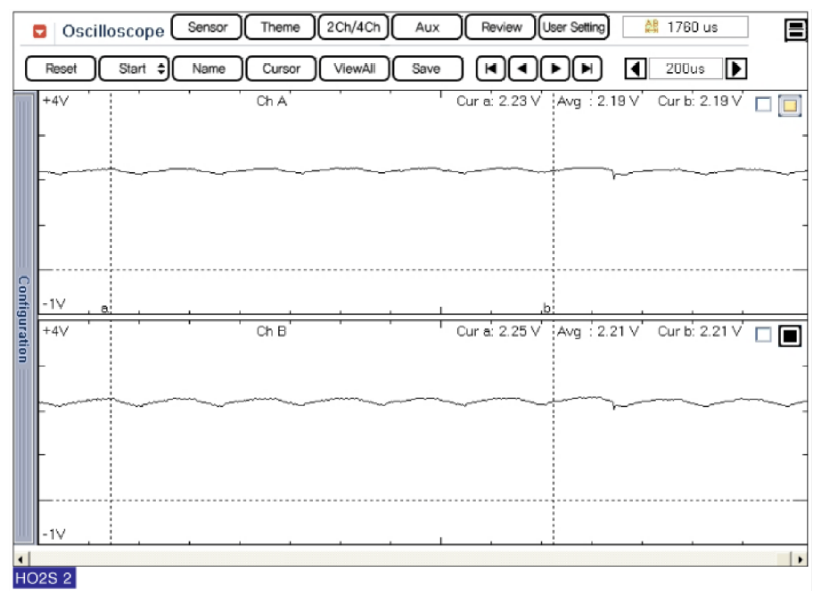

Fig 2: HO2S 2 Signal Waveform
G09772988Courtesy of KIA MOTORS AMERICA, INC.

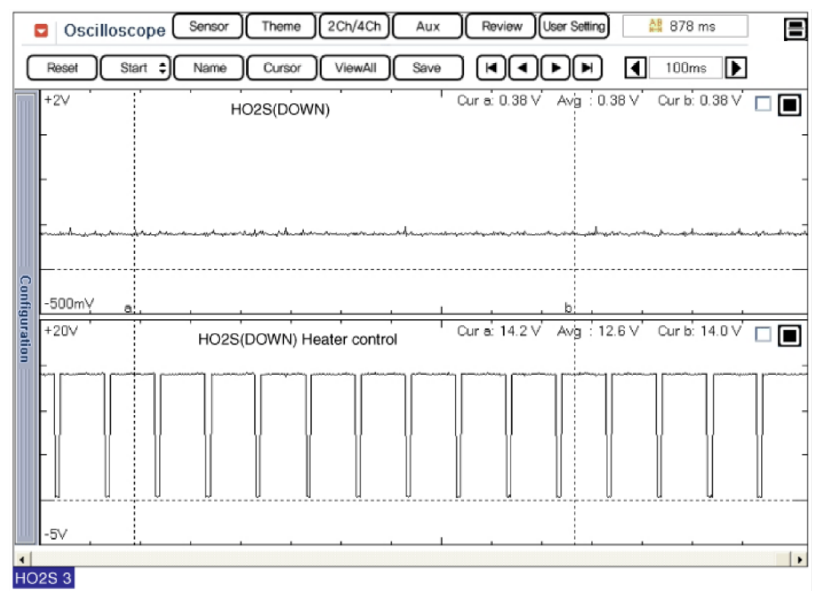

Fig 3: HO2S 3 Signal Waveform
G09772989Courtesy of KIA MOTORS AMERICA, INC.
