Circuit Diagram: (M/T)

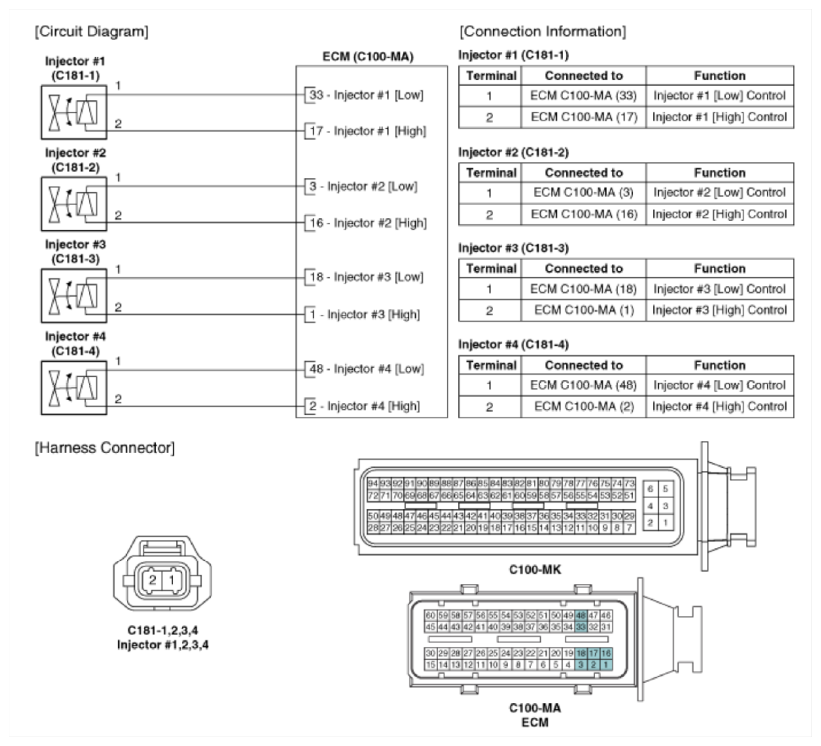

Fig 1: Injector System (M/T) - Circuit Diagram

G09773016

Courtesy of KIA MOTORS AMERICA, INC.
