Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the intake air temperature sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.

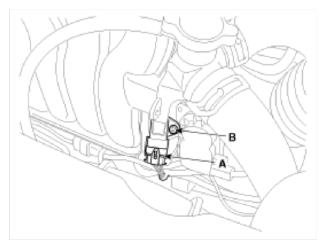

    Fig 1: Identifying Intake Air Temperature Sensor Connector And Installation Bolt
    G09772961Courtesy of KIA MOTORS AMERICA, INC.
