Repair Procedures: Removal

Remove the shift lever knob & boots assembly (A) by Pulling in the upside.

Fig 1: Shift Lever Knob & Boot Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Remove the rear heating joint duct (A).

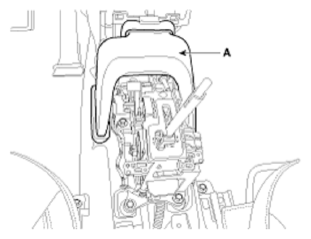

Fig 2: Rear Heating Joint Duct
Courtesy of KIA MOTORS AMERICA, INC.

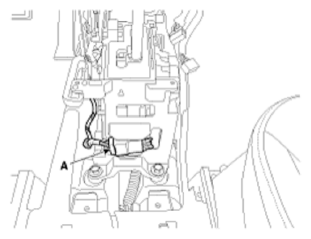

Disconnect the shift lever main connector.

Fig 3: Shift Lever Main Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring (A) from the shift lever assembly.

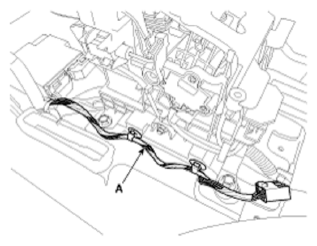

Fig 4: Shift Lever Assembly Wiring
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable (A) from the shift lever assembly.

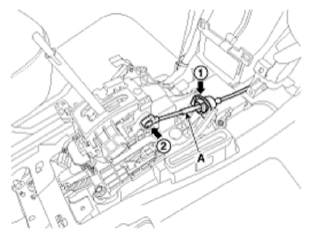

Fig 5: Removing Shift Cable From Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly (A) by removing the bolts.
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

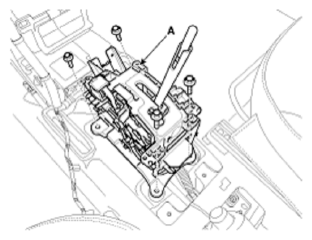

Fig 6: Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
