Repair Procedures: Removal

Change the shift lever to "N" range.
Remove the valve body assembly.
(Refer to "FLUID ")
Disconnect the input & output speed sensor connector (A).
Loosen the main connector bolt (B).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

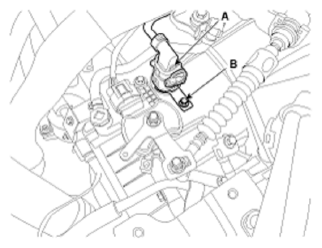

Fig 1: Input/Output Speed Sensor Connector & Main Connector Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the solenoid valve connector (A).
Remove the solenoid valve connector clip (B) after loosening a bolt and then remove the connector by pushing down to it.

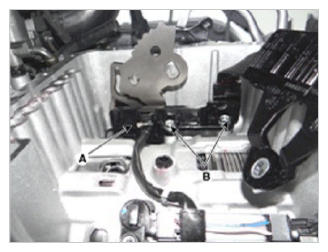

Fig 2: Solenoid Valve Connector & Clip
Courtesy of KIA MOTORS AMERICA, INC.
