Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "Neutralization mode".

Fig 1: Display - Neutralization Mode Selection Screen
Courtesy of KIA MOTORS AMERICA, INC.

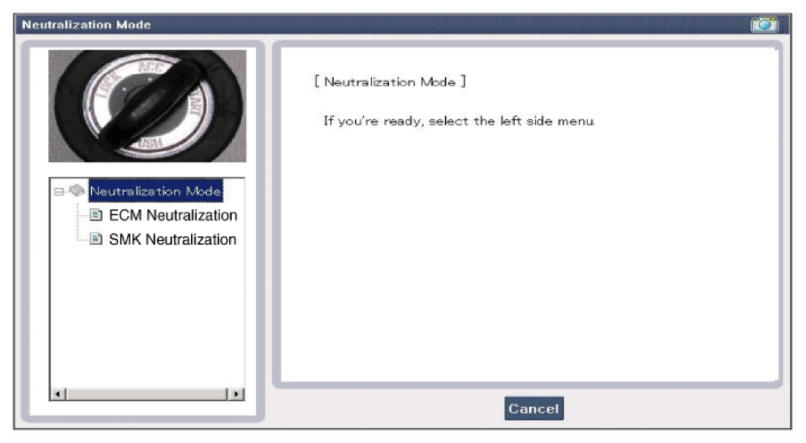

Fig 2: Display - Neutralization Mode Screen

Courtesy of KIA MOTORS AMERICA, INC.

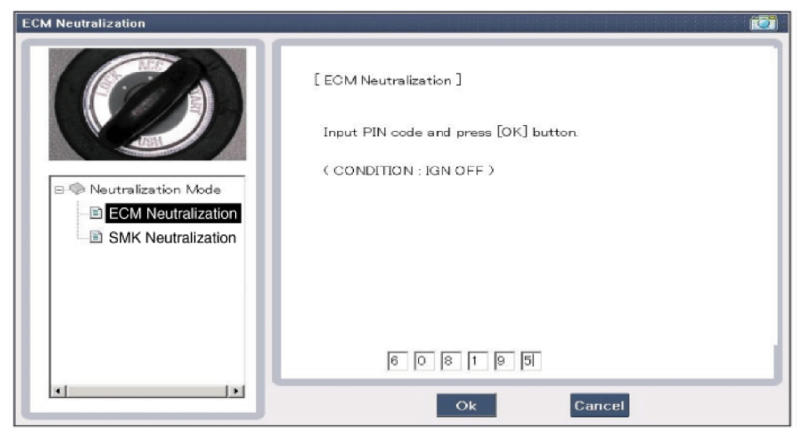

Fig 3: Display - ECM Neutralization Mode Screen (With Input Pin Code)

Courtesy of KIA MOTORS AMERICA, INC.

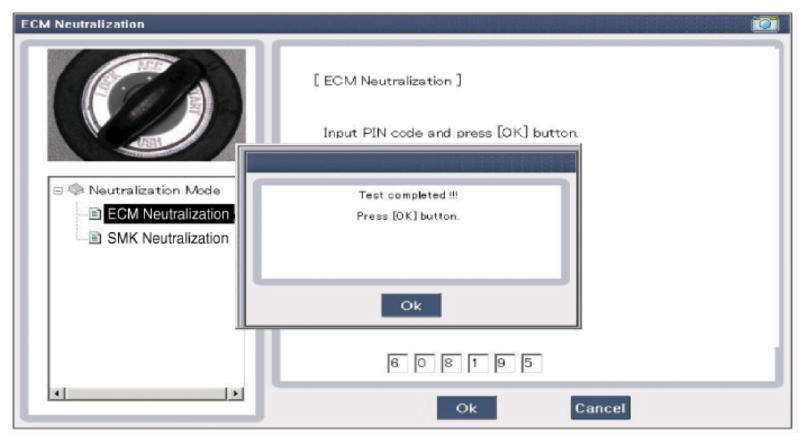

Fig 4: Display - ECM Neutralization Test Completed Screen

Courtesy of KIA MOTORS AMERICA, INC.

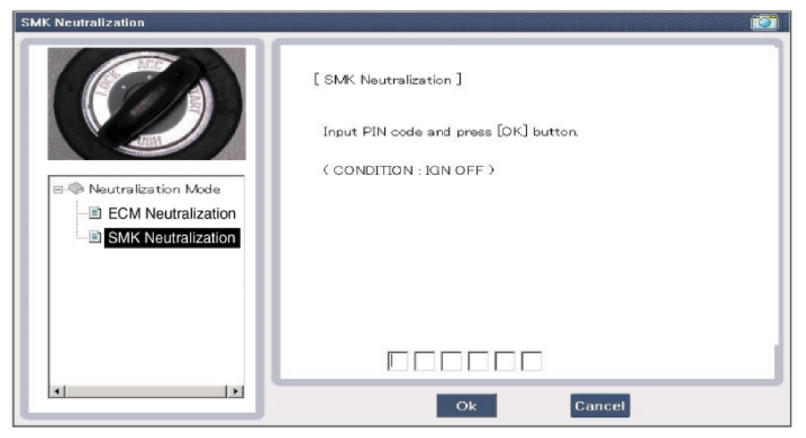

Fig 5: Display - SMK Neutralization Mode Screen (Without Input Pin Code)

Courtesy of KIA MOTORS AMERICA, INC.

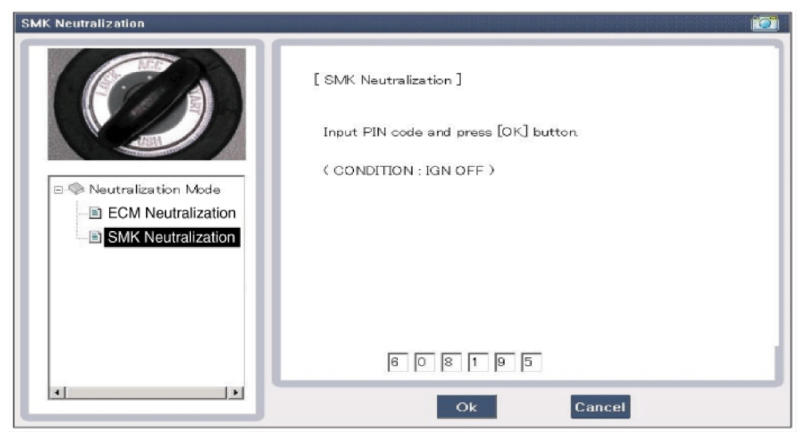

Fig 6: Display - SMK Neutralization Mode Screen (With Input Pin Code)

Courtesy of KIA MOTORS AMERICA, INC.

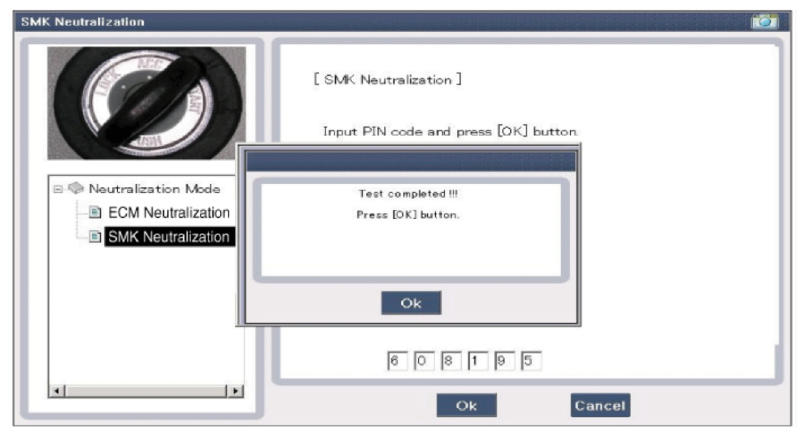

Fig 7: Display - SMK Neutralization Mode Completed Screen

Courtesy of KIA MOTORS AMERICA, INC.

INPUT SIGNAL LIST

No.	Item name	Unit
1	SSB SW1	-
2	SSB SW2	-
3	ACC	-
4	IGN1	-
5	IGN2	-
6	Gear 'P' Position (A/T) Clutch SW (M/T)	-
7	Brake SW	-
8	FL Door Lock Button	-
9	FR Door Lock Button	-
10	Battery Voltage	-
11	Wheel Speed	-
12	RPM	-
13	Stop Lamp Fuse	-
14	Start Feed Back	-

ACTUATOR LIST

No.	Item name	Condition
1	Immobilizer indicator Lamp (Cluster)	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna Active	Ignition switch ON Engine off
6	Bumper/trunk Antenna Active	Ignition switch ON Engine off
7	DRV_DR Antenna Active	Ignition switch ON Engine off
8	AST_DR Antenna Active	Ignition switch ON Engine off
9	SSB Illumination (OFF/ACC/ON)	Ignition switch ON Engine off
10	ACC/IGN1/IGN2 Relay	Ignition switch ON Engine off
11	ESCL Driver	Ignition switch ON Engine off
