Serial Communication Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

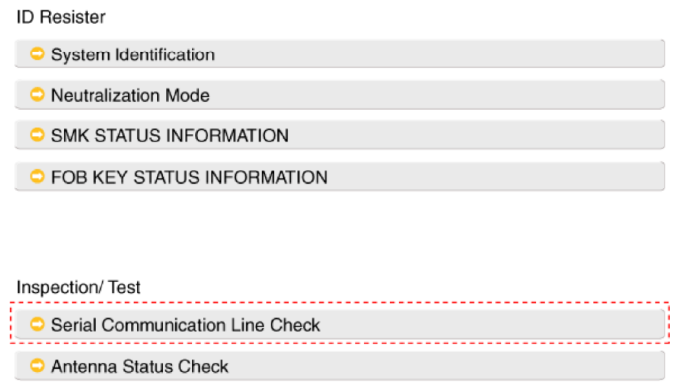

Select the "Serial Communication Line Check".

Fig 1: Display - Serial Communication Line Check Screen
Courtesy of KIA MOTORS AMERICA, INC.

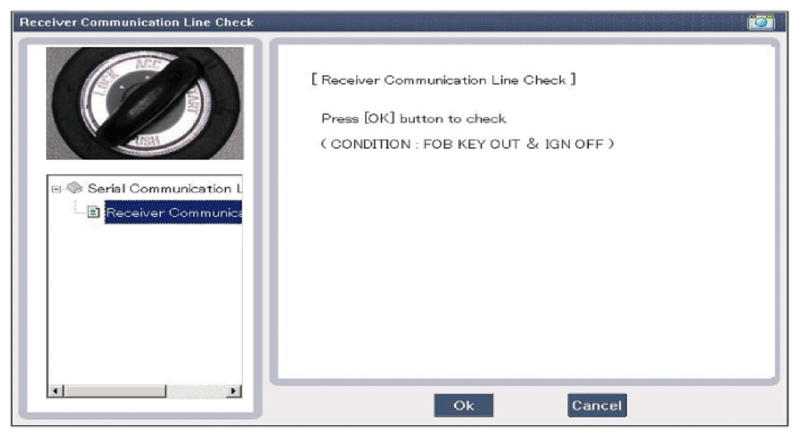

After IGN ON, select the "Receiver Communication Line Check".

Fig 2: Display - Receiver Communication Line Check
Courtesy of KIA MOTORS AMERICA, INC.
Check the serial communication line with a GDS.
If the smart key runs normal, the communication of smart key unit, exterior receiver are normal.
If the smart key runs abnormal, check the following items.
- Disconnection or no response of the exterior receiver communication line.
- The exterior receiver communication line disconnection and ground connection.
