Interior Antenna

NOTE: Take care not to scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to FLOOR CONSOLE ASSEMBLY )

  3. Disconnect the connector, then remove the interior antenna (A) with loosening 2 nuts.

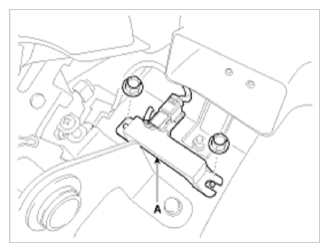

    Fig 1: Interior Antenna And Nuts
    G09744828Courtesy of KIA MOTORS AMERICA, INC.
