Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to "FRONT DOOR TRIM ")

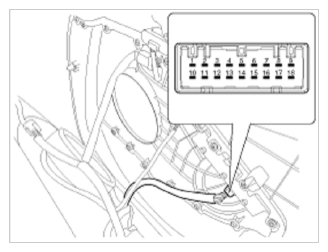

Disconnect the connector from the power window switch module.

Fig 1: Power Window Switch Module Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table.
[Driver/Passenger Safety]

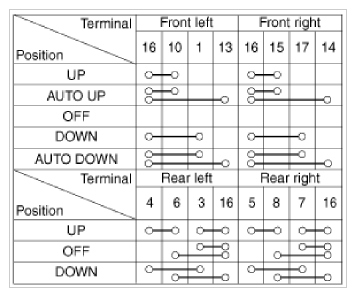

Fig 2: Continuity Reference Chart - Driver/Passenger Safety (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Continuity Reference Chart - Driver/Passenger Safety (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

[Driver Auto Down]

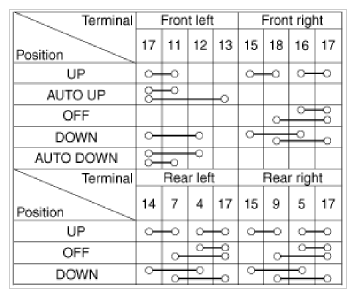

Fig 4: Continuity Reference Chart - Driver Auto Down (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Continuity Reference Chart - Driver Auto Down (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

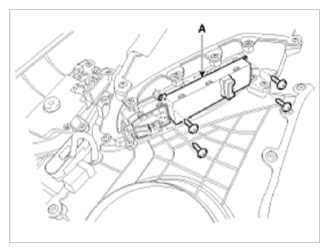

Remove the power window switch (A) after loosening the screws.

Fig 6: Main Power Window Switch
Courtesy of KIA MOTORS AMERICA, INC.
