Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Using a screwdriver or remover, remove the center garnish [LH] (A).

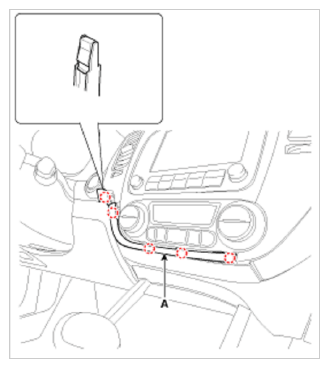

Fig 1: Center Garnish Clip Locations (LH)
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the cluster fascia panel (A).

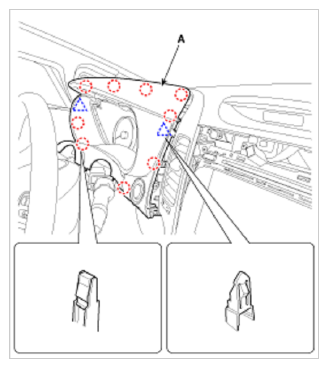

Fig 2: Cluster Fascia Panel Clip Locations
Courtesy of KIA MOTORS AMERICA, INC.
Remove the start/stop button (A) after loosening the screws from the cluster fascia panel.

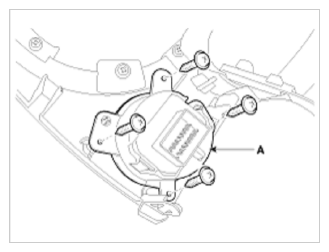

Fig 3: Start/Stop Button & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
