Circuit Diagram: (A/T)

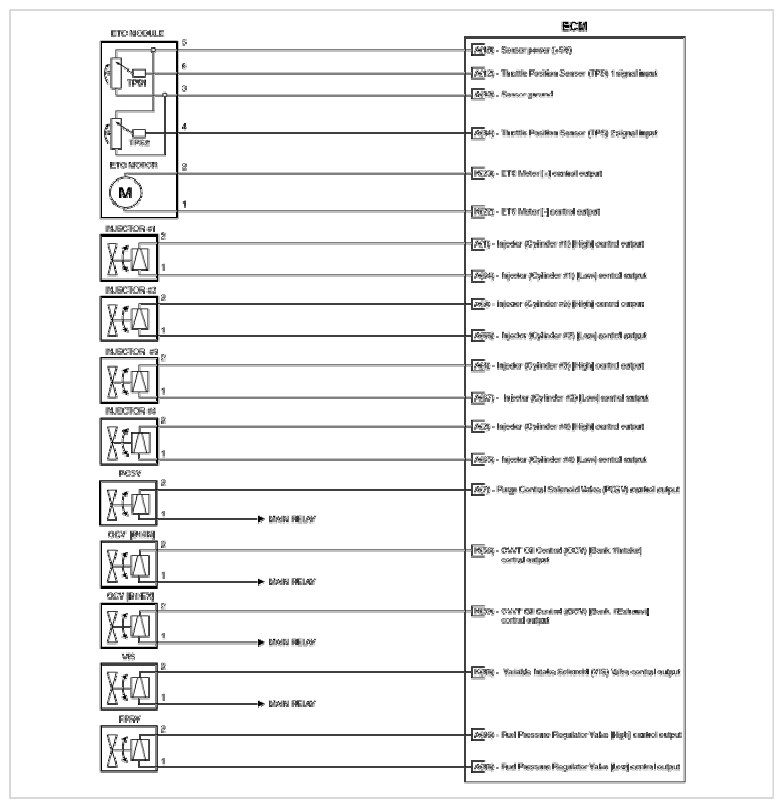

Fig 1: Engine Control Module - Circuit Diagram (A/T) (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

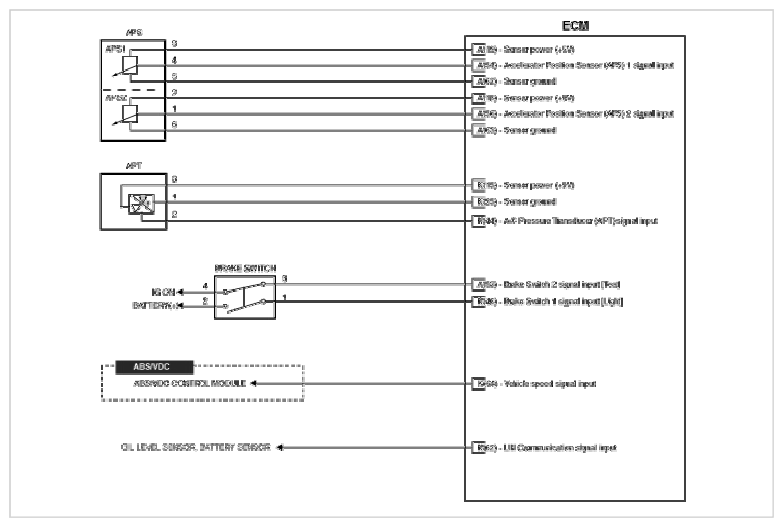

Fig 2: Engine Control Module - Circuit Diagram (A/T) (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

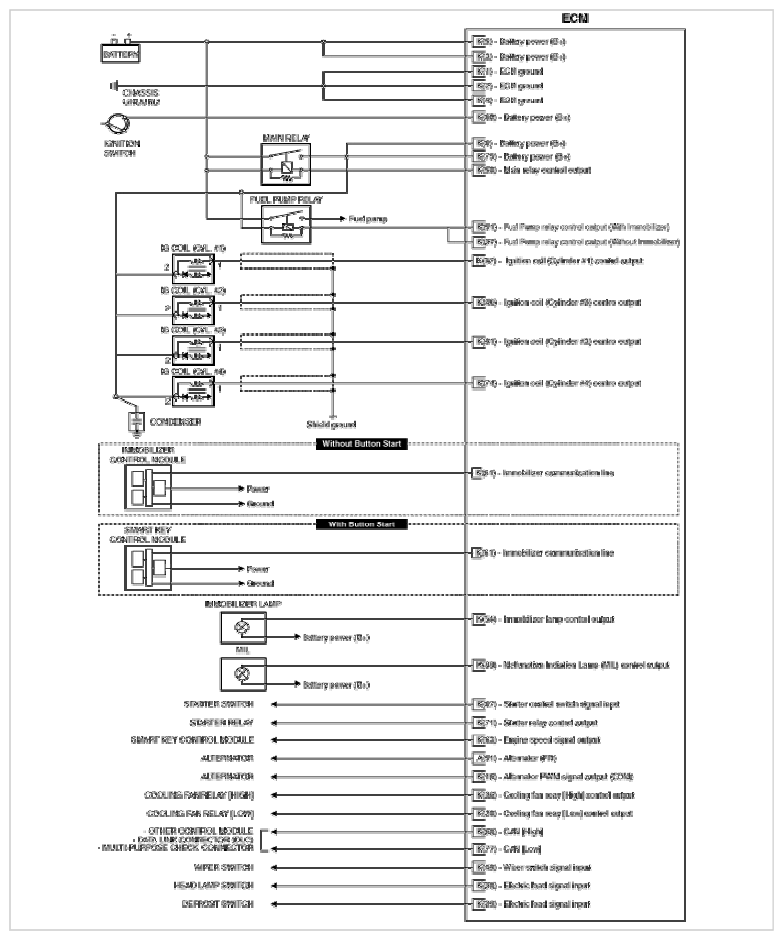

Fig 3: Engine Control Module - Circuit Diagram (A/T) (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

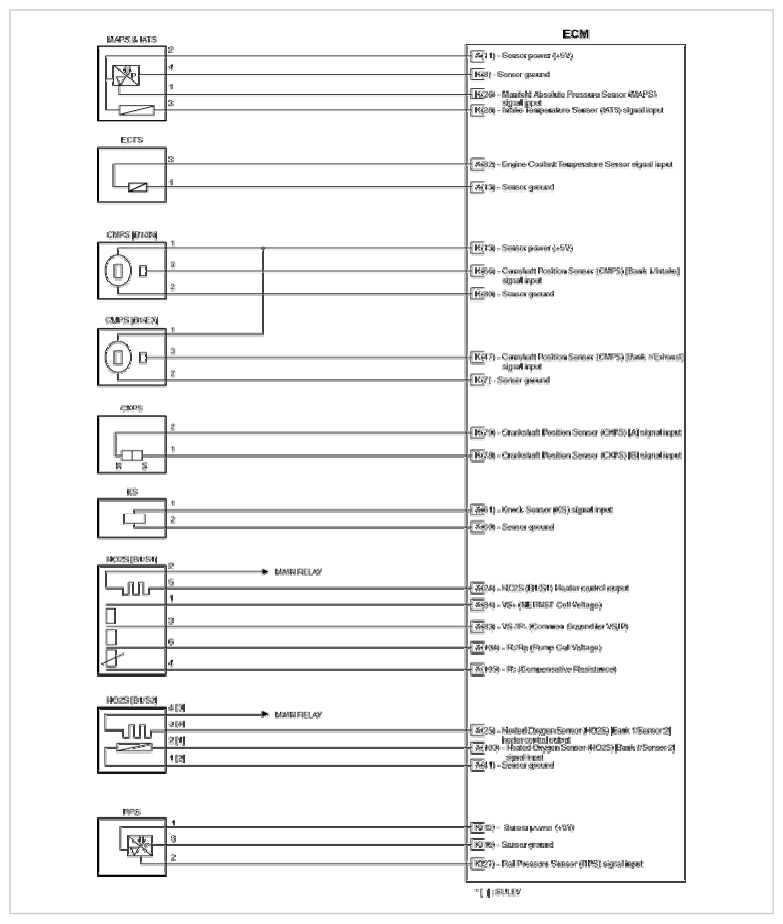

Fig 4: Engine Control Module - Circuit Diagram (A/T) (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
