Repair Procedures: Inspection

  1. Measure the primary coil resistance between terminals (+) and (-)

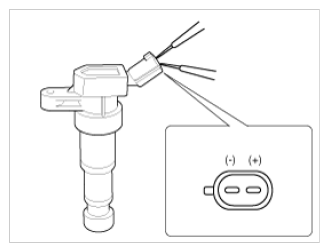

    Fig 1: Measuring Primary Coil Resistance Between Terminals (+) And (-)
    G09742790Courtesy of KIA MOTORS AMERICA, INC.

    Standard Value:  0.75Ω ± 15%
