Repair Procedures: Replacement

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")

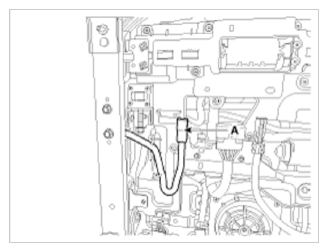

Disconnect the front seat belt buckle connector wiring (A).

Fig 1: Front Seat Belt Buckle Connector
Courtesy of KIA MOTORS AMERICA, INC.

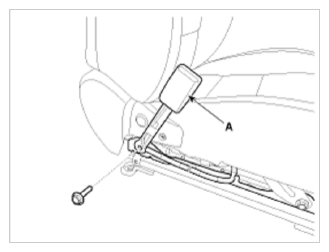

After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening Torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Fig 2: Front Seat Belt Buckle
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
