Components Location

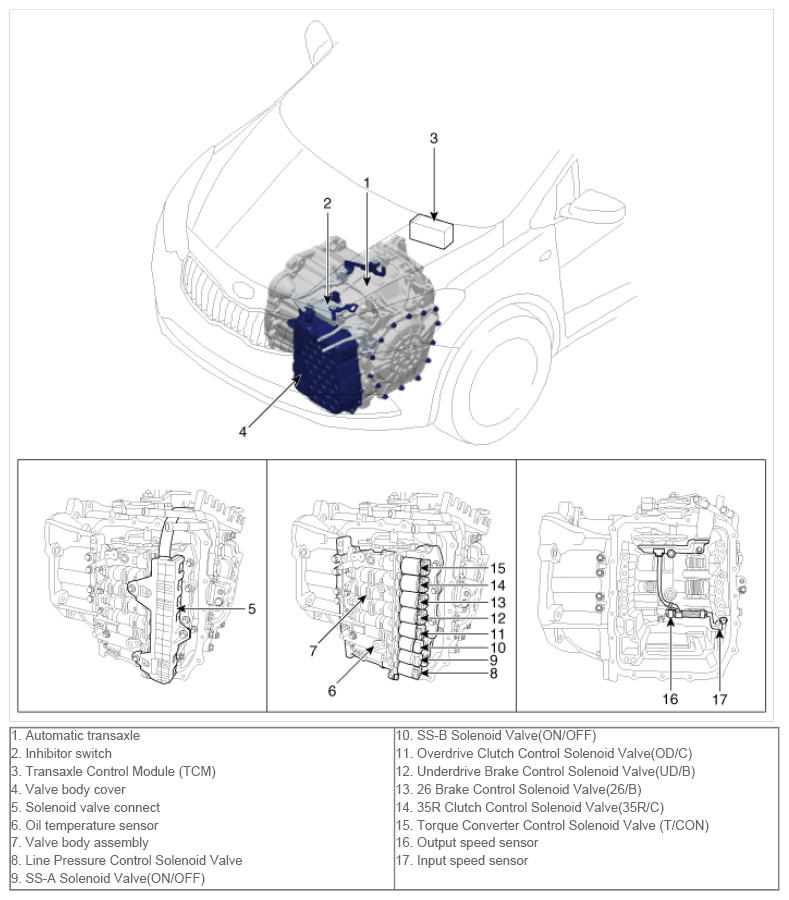

Fig 1: Automatic Transaxle System Components (1 Of 2)
G09743311Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Automatic Transaxle System Components (2 Of 2)
G09743312Courtesy of KIA MOTORS AMERICA, INC.
