Description And Operation: Description: [Bank1/Intake]

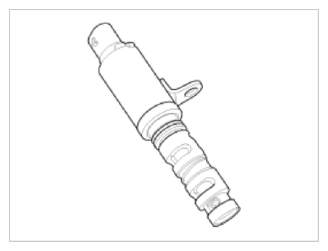

Fig 1: CVVT Oil Control Valve (Bank1/Intake)
G09748795Courtesy of KIA MOTORS AMERICA, INC.
